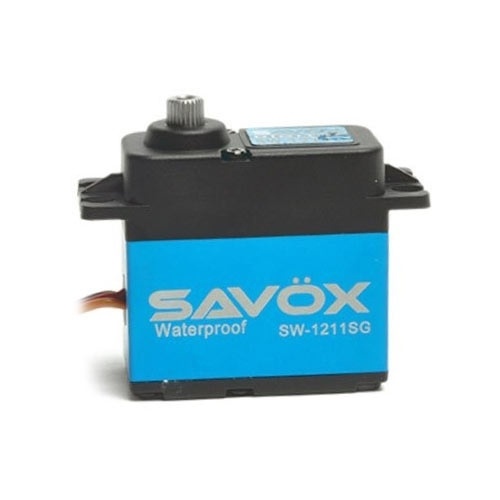

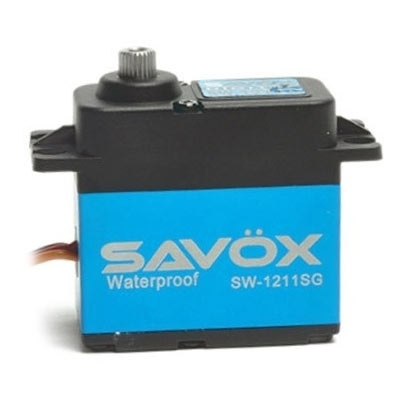

SW-1211SG Waterproof High Voltage Metal Gear Digital Servo

Savox SW1211SG Waterproof Digital Gear Servo

SKU: HS0203


$169.95
RRP $339.95
In Stock




Calculate Shipping

Waterproof High Voltage Metal Gear Digital Servo

Savox SC-1211SG Waterproof Digital Gear Servo

The SW-1211SG Servo is an extremely versatile waterproof servo that's a great updgrade to standard RTR servos
and fitsm Any conditions where use is vital in rain, sleet, or snow.

Features:

Waterproof construction for harsh elements.
Strong unique steel gears provide durability and assurance.
Capable of HV operation.
Ideal for 1/10 vehicles and boats

Specifications:

Torque @6v - 15.0kg/208.3oz-in
Torque @7.4v - 15.0kg/347.2.0oz-in
Speed @6v - 0.10 sec/60 deg
Speed @7.4v - 0.08 sec/60 deg

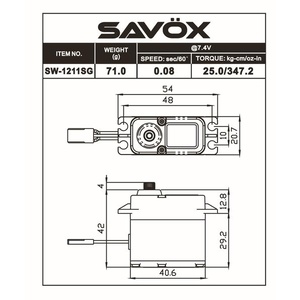

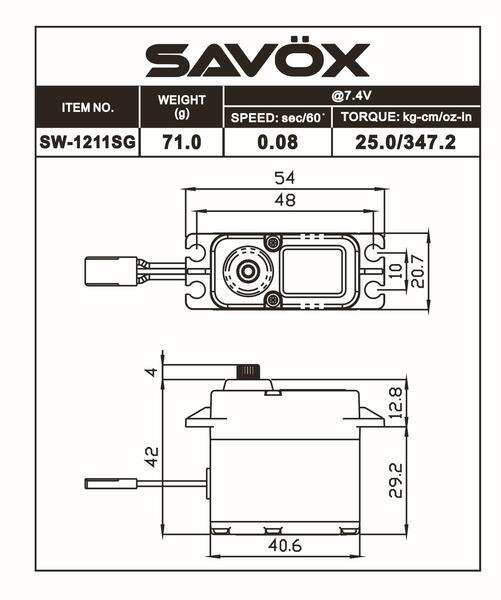

Dimensions L x W x H (mm): 40.6 x 20.7 x 42.0
Weight: 71.0g

Operating Temperature: 14° - 122°F (-10° - 50°C)
Running Current (no load): 120mA @6.0V, 150mA @7.4V
Stall Current (at locked): 6000mA @6.0 V, 7400mA @7.4V
Idle Current: 5mA @4.8V, 5mA @6.0V
Wire Length: 150 ± 5mm
Output Gear Spline: 25 Tooth
Bearings: 2BB
Operating Travel: 100° (1000 → 2000 µ second)
Neutral Position: 1500 µ second
Pulse Width Range: 800 → 2200 µ second
Maximum Travel: Appx 130° (900 → 2100 µ second)
Refresh Rate: 333 Hz
Motor Type: Coreless

CLICK HERE TO SEE OTHER SERVOS IN OUR RANGE

SKU HS0203
Barcode # 9351634016976
Brand Savox
Shipping Weight 0.1000kg
Shipping Width 0.080m
Shipping Height 0.030m
Shipping Length 0.080m
Shipping Cubic 0.000192000m3

Savox servo SW1211SG

By: on 8 May 2020
The savox servo I ordered from auselectronicsdirect was replacing the standard servo that was installed in a Traxxas traxx crawler which struggled to turn the traxx while stationary,With the new savox servo installed it has the turning authority it’s fantastic I’m very happy with the new savox SW1211SG thank you auselectronicsdirect.
