Specifications

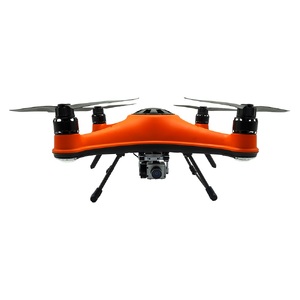

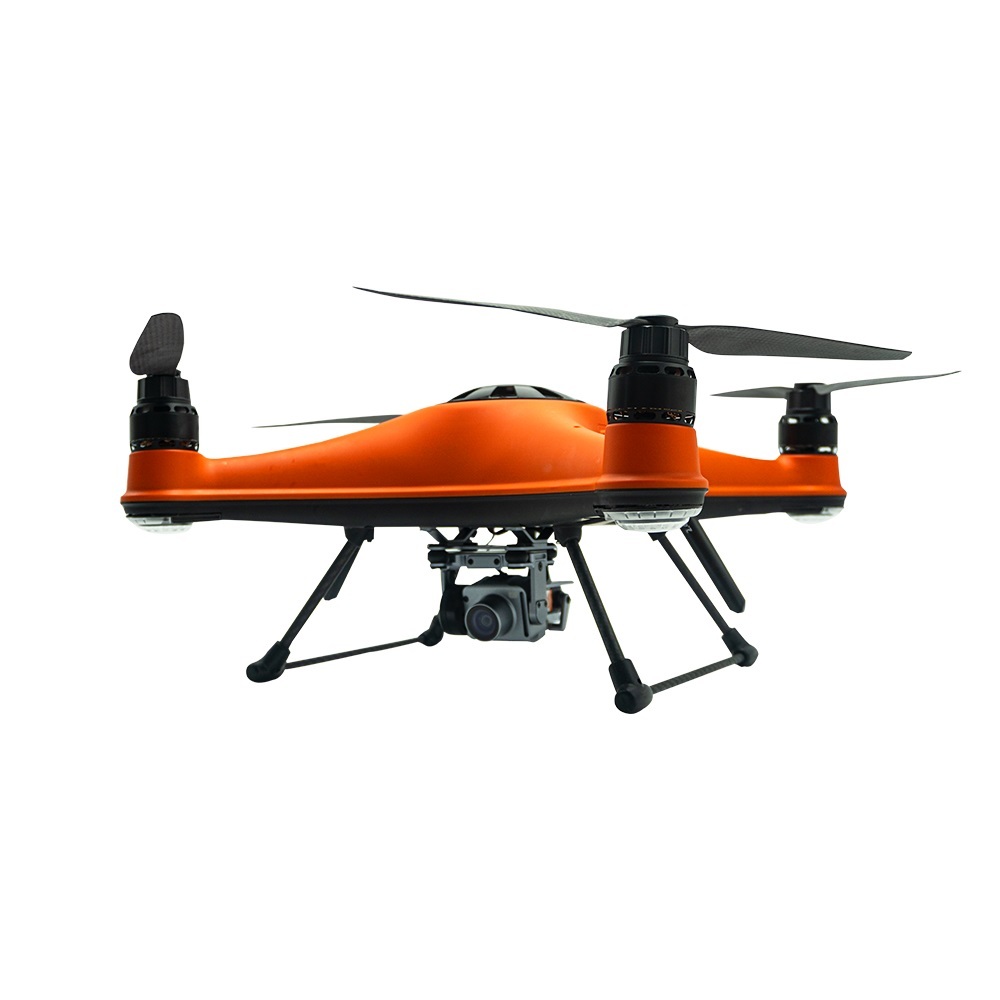

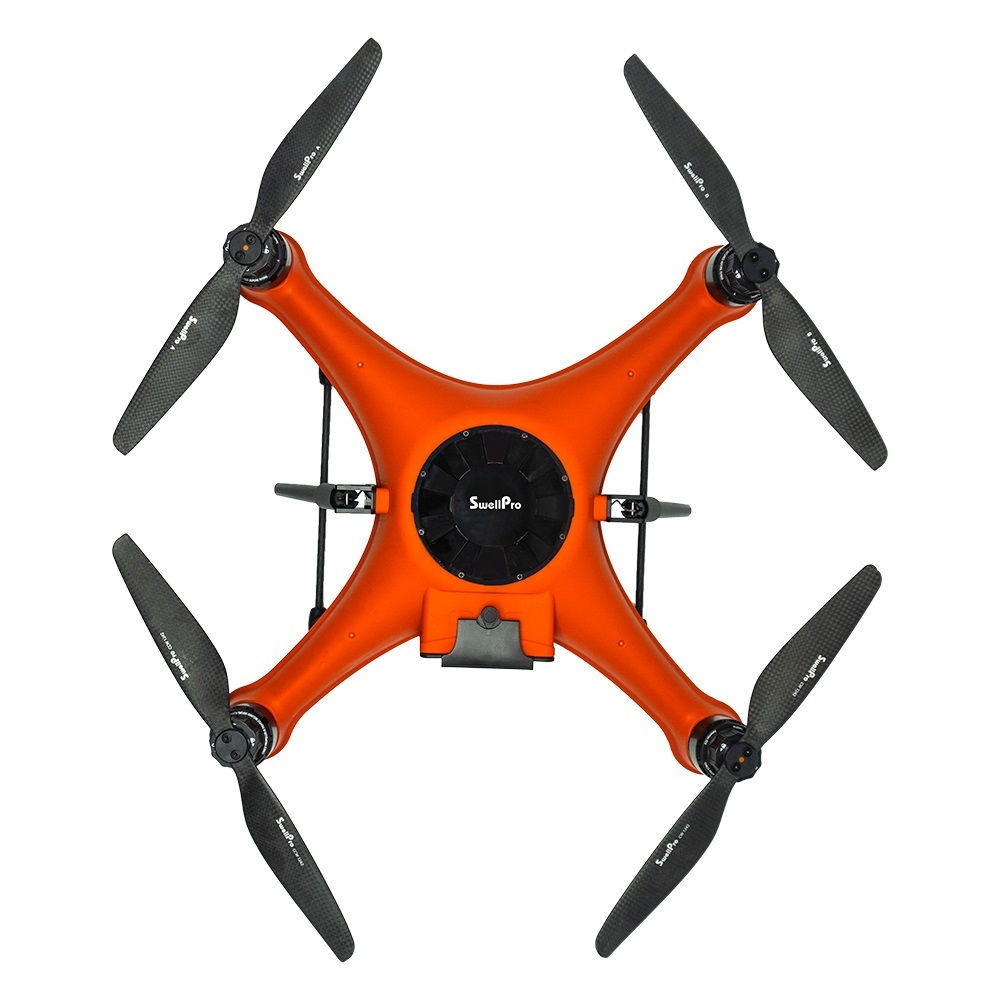

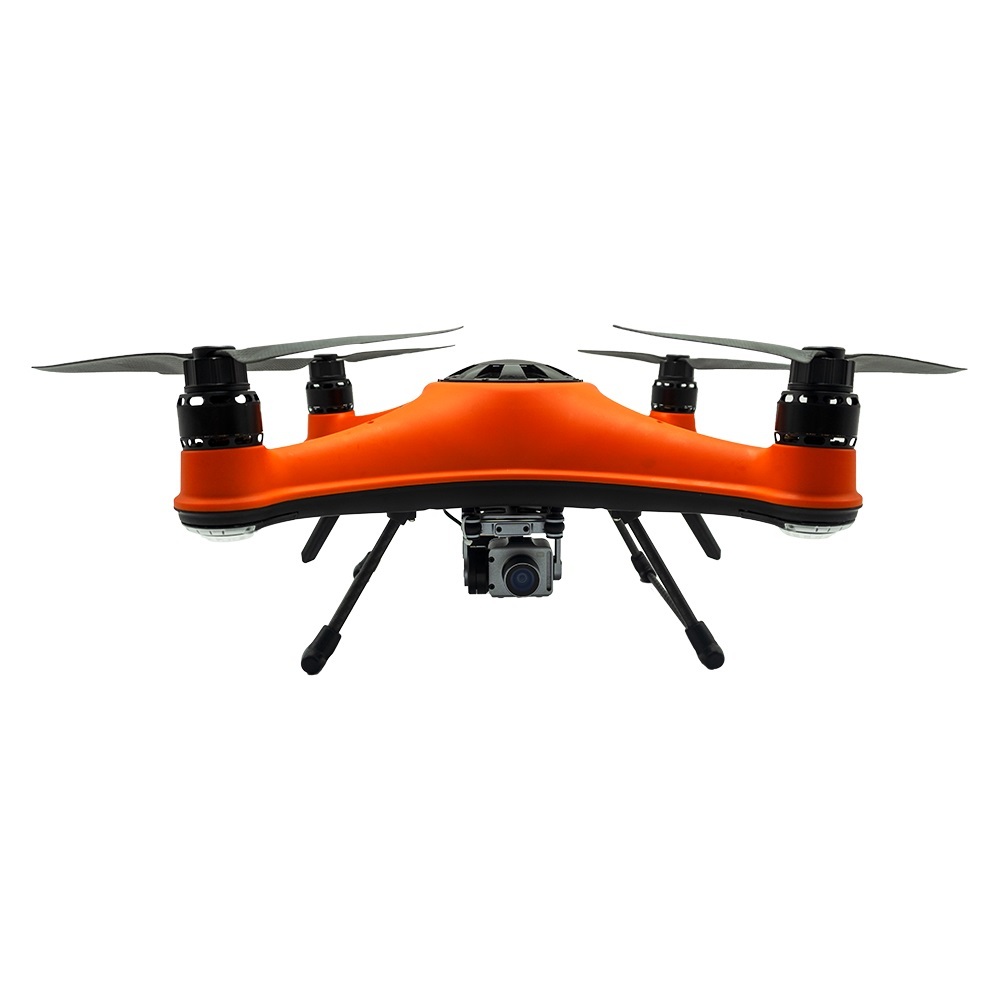

Aircraft

Waterproof rating: IP67

Drone weight: 5.5 lbs / 2.54 kg (​​including battery, propellers, gimbal camera, and payload release module)

Size (w/o propeller): 14.6*14.6*7.9 in / 372*372*202mm

Max ascend speed: 7 mph / 3 m/s

Max descent speed: 4.5 mph / 2 m/s

Max flight speed:

-GPS: 22 mph / 10 m/s

-ATTI: 40 mph / 18 m/s (without payload); 31 mph / 14 m/s (with payload)

Max tilt angle: 30°

Max altitude from take-off point: 393 ft / 120 m

Max flight distance: 1 mile / 1500 m

Max image transmission distance: 0.74 mile / 1200 m

Max payload capacity: 4.4 lbs / 2 kg

Flight time: up to 27 mins (no wind & no load)

Max wind speed resistance: 40 mph / 18 m/s / 35 knots

Hovering precision: ±1.6 feet / ±0.5 m

Satellite positioning system: GPS/Galileo

RC transmitter power: 2.405-2.475GHz, <33 dBm(FCC), <20 dBm(CE)

Image transmitter power(for Advanced Version only)

: 5.725-5.825GHz,<33 dBm(FCC),<14 dBm(CE)

Working temperature: 14℉ ~ 104℉ / -10℃ ~ 40℃

Certifications: CE/FCC/ROHS/RCM

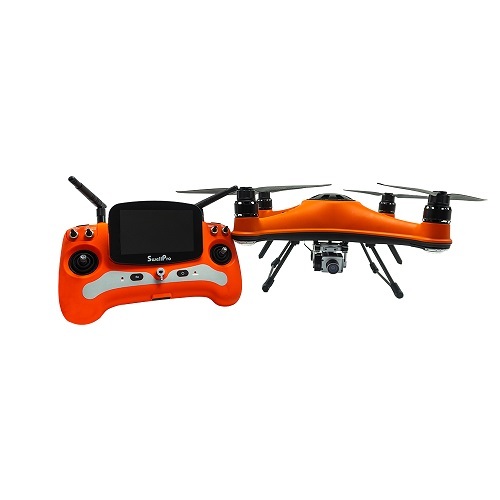

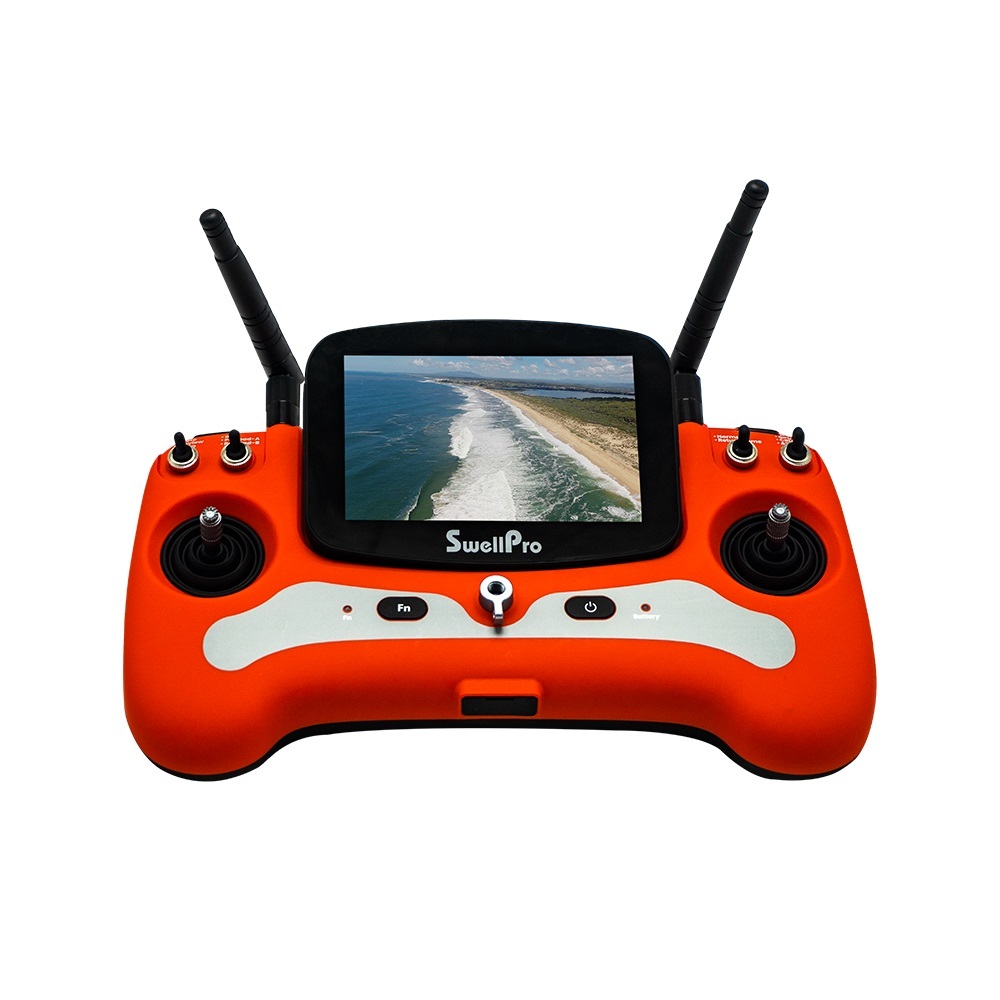

Remote Controller

Weight: 1.56 lbs / 709 g

Waterproof rating: IP54

Size: 11*7.5*3 inch / 276*190*74 mm

Operating Frequency: 2.405-2.475 GHz, 5.725 - 5.825 GHz (advanced version); 2.405-2.475 GHz (basic version)

Transmitter Power (EIRP): 2.405-2.475GHz: <26 dBm (FCC), <20 dBm (CE)

Sensitivity: -92 dB

Battery: 2S 3000 mAh

Working time: 5 hours (advanced version); 9 hours (basic version)

Charging time: 3 hours

Power input: 5V/2A USB-C

Multi-color display (advanced version):

-Screen size: 5 inch

-Screen resolution: 800*480 px

-Screen brightness: 500 cd/m2

-Screen Aspect ratio: 16:9

Monochrome display (basic version):

-Screen size: 3.5 inch

Language: English

Working temperature: 14℉ ~ 104℉ / -10℃ ~ 40℃

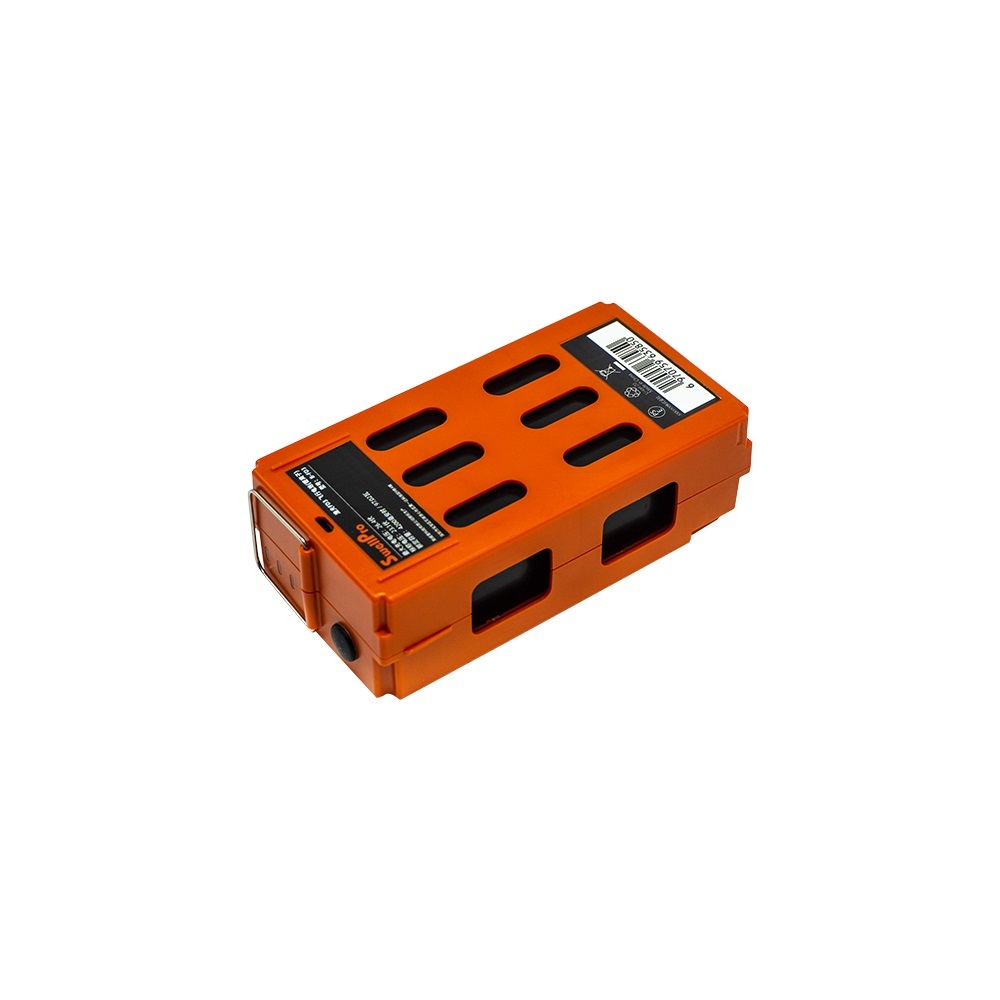

Flight Battery

Capacity: 4200 mAh

Voltage: 23.1V

Type: 6S LIHV

Size: 6*3.2*1.9 in / 153.6*82.4*48.3mm

Weight: 1.57 lbs / 716 g

Working temperature: 32℉ ~ 104℉ / 0℃ ~ 40℃

Charging Time: 120 mins

Max Charging current: 5A

Charger

Input: 100 - 240V

Output: 25.2V

Max charging power: 150W

Supported battery types and cell: 6S LIHV

Size: 5.6*4*2.4 inch / 143*100*60 mm

Power cable: 3.9 feet / 1.2 m

Charging cable: 1.6 feet / 0.5 m

Weight: 1 lb / 454.6 g

Working & storage temperature: 32℉ ~ 140℉ / 0℃ ~ 60℃

Available types of power adapters:

• Type A: USA, Canada, Mexico & Japan
• Type B: Europe, South America & Asia
• Type G: United Kingdom, Ireland, Malta & Singapore
• Type I: Australia & New Zealand

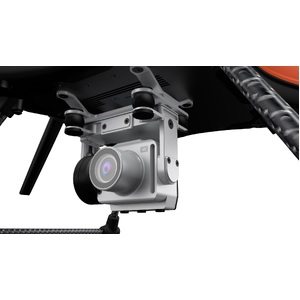

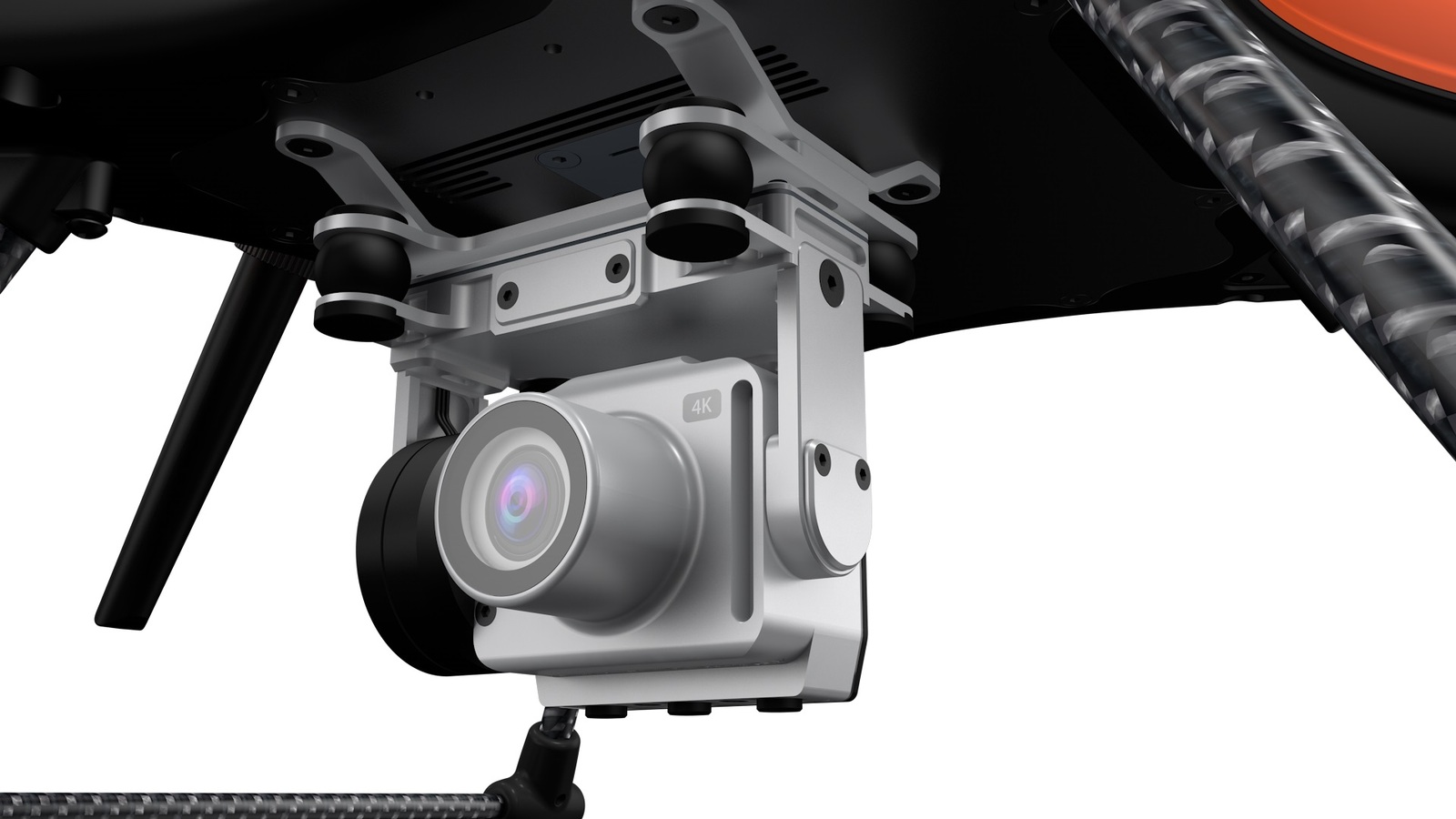

Camera

Waterproof rating: IP67

Stabilization: 1-axis (tilt)

Tilt range: -90° to 0°

Weight: 0.38 lbs / 176.5 g

Size: 3.1*2.7*2.7 inch / 79*69*70 mm

Image sensor: 1/2.3 CMOS, 12M

Lens: F4.5mm f/2.65, FOV: 92.6°

ISO range: 100 - 3200

Shutter speed: 16 - 1/16000 s

Video resolution: 4K:30fps | 2.7K:60fps | 1080P:120/60/30fps | 720P: 240/120/60fps

Photo resolution: 4000*3000 (4:3), 3840*2160 (16:9)

Max video bitrate: 60 Mbps

Photo format: JPEG / DNG (RAW)

Video format: MP4  /MOV

Supported memory card: microSD card with a maximum capacity of 128GB, write speed ≥ 60 MB/s, recommend using Class 10 or above & UHS-1 rating

Working temperature: 14℉ ~ 104℉ / -10℃ - 40°C



Bait Release

Waterproof rating: IP67

Max payload capacity: 4.4 lbs / 2 kg

Size: 2.9*1.9*1.4 in /  75*50*37.5 mm

Weight: 3.5 oz / 100 g



What’s in the box?



SKU	TR3212
Barcode #	9351634077564
Brand	SwellPro
Shipping Weight	10.0000kg
Shipping Width	0.300m
Shipping Height	0.200m
Shipping Length	0.300m
Shipping Cubic	0.018000000m3
