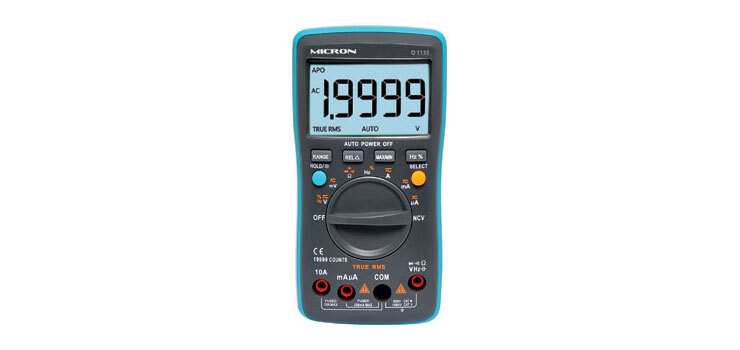

True RMS Autoranging Digital Multimeter

True RMS Autoranging Digital Multimeter w/ Large LCD

SKU: TT4398


$89.95
RRP $179.00
In Stock

Buy In Bulk & Save!
Buy 4 to 10: Pay $85.45 ea
Buy 11 to 20: Pay $76.91 ea
Buy 21 to 100: Pay $69.22 ea




Calculate Shipping

True RMS Autoranging Digital Multimeter

True RMS Autoranging Digital Multimeter w/ Large LCD

The largest screen in our range with 19999 count! This meter offers everything the serious enthusiast or trades person could need with auto ranging true RMS measurement, min/max & relative modes; frequency, duty cycle and non-contact voltage detection. Plus the standard AC/DC modes commonly found on all multimeters. The larger display offers extended resolution for measurements. Supplied with test probes and carry pouch.


Features

  • Large easy read 19999 count screen
  • Auto ranging
  • True RMS measurement
  • Data hold, min/max and relative modes
  • Continuity buzzer
  • Diode test
  • Non contact AC voltage detection
  • 2x AA battery included

Specifications

  • Voltage DC: 19.999mV, 199.99mV, 1.9999V, 19.999V, 199.99V, 1000V (±0.05%+3d)
  • Voltage AC: 19.999mV, 199.99mV, 1.9999V, 19.999V, 199.99V, 750V (±0.3%+3d)
  • Current DC: 199.99µA, 1999.9µA, 19.999mA, 199.99mA, 1.9999A, 10.000A (±0.5%+3d)
  • Current AC: 199.99µA, 1999.9µA, 19.999mA, 199.99mA, 1.9999A, 10.000A (±0.8%+3d)
  • Capacitance: 9.999nF, 99.99nF, 999.9nF, 9.999µF, 99.99µF, 999.9µF, 9.999mF (±2%+5d)
  • Ohms: 199.99Ω, 1.9999kΩ, 19.999kΩ, 199.99kΩ, 1.9999MΩ, 19.999MΩ, 199.99MΩ (±1%+3d)
  • Continuity: 40Ω threshold, audible tone
  • Diode test: Test current 5mA max
  • Duty cycle: 1-99% @ 250V RMS max (±0.1%+2d)
  • Frequency: 99.99Hz - 9.999MHz (±0.1%+2d)
  • Display: 4.75 digit, 19999 count, backlit
  • Protection: 200mA M205 fused, 10A input fused
  • Dimensions: 81W x 39D x 161H mm

    *Specifications are subject to change without notice.



CLICK HERE TO SEE OTHER MULTIMETERS IN OUR RANGE

3 Month Warranty

SKU TT4398
Barcode # 9321758226896
Brand Aus Electronics Direct
Shipping Weight 0.3000kg
Shipping Width 0.300m
Shipping Height 0.050m
Shipping Length 0.250m
Shipping Cubic 0.003750000m3
Unit Of Measure ea
Assembled Length 0.700m
Assembled Height 0.240m
Assembled Width 0.126m
