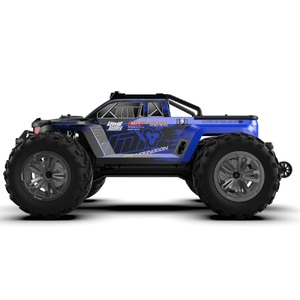

UD1201 Pro 1:12 4WD Brushless Off-Road RC Truck Car w/ LED Lights
Super Fast & Tough Brushless Off-Road RC Stunt Truck
SKU: TR1976
UD1201 Pro 1:12 4WD Brushless Off-Road RC Truck Car w/ LED Lights
Super Fast & Tough Brushless Off-Road RC Stunt Truck
Complete Ready to Run with 3S Lipo Battery, Battery Charger and Radio Controller

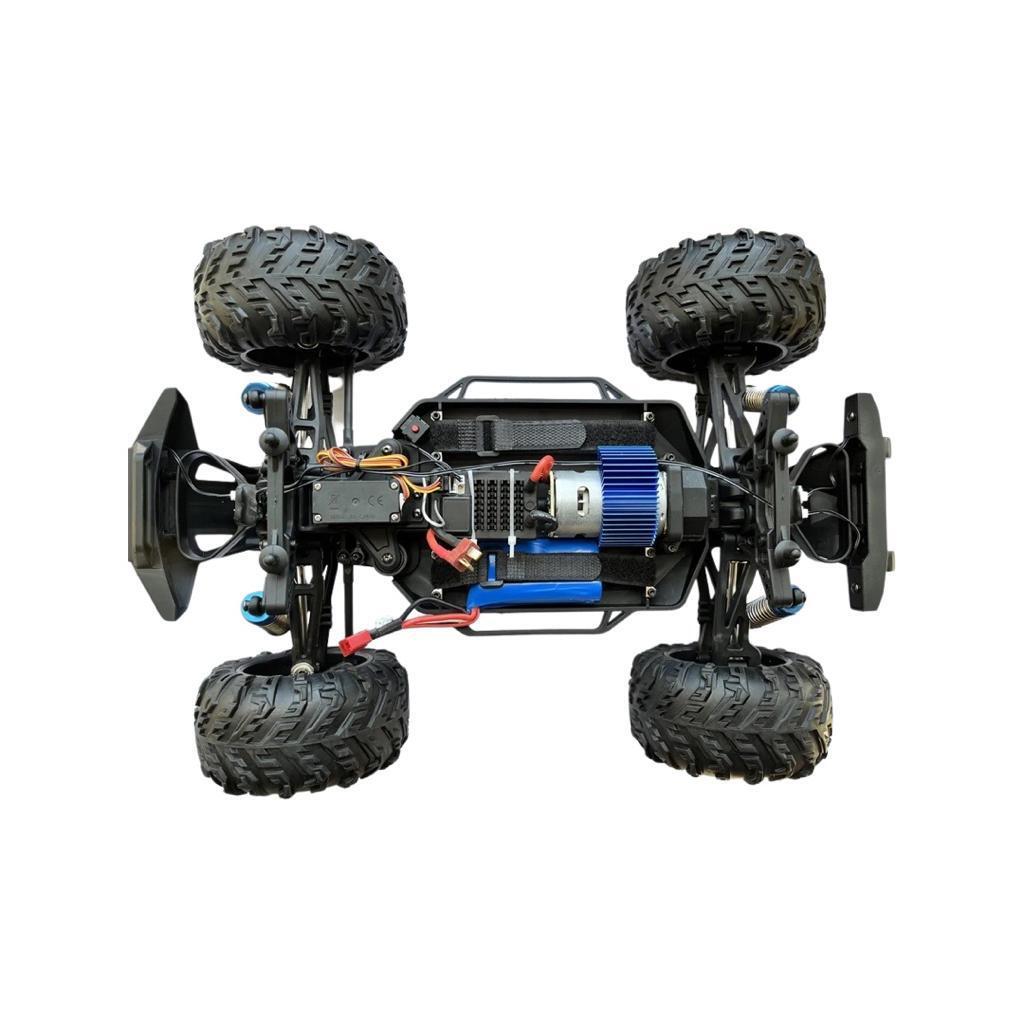

Super Fast & Tough Brushless Off-Road RC Stunt Truck. The UDI 1201 Pro is built to last and take serious punishment; it has features such as metal reinforcing bracket, metal differentials, metal drive shafts and metal bulkhead tie bars ensures that the design is very durable.
The ESC (Electronic Stability Program) Gyro feature built in makes it easy and stable to control. The Powerful 3000KV Brushless Motor and 60A Brushless ESC will propel the RC Truck to speeds up to 65kmh with up to 15 minutes of play time from the 3s Lipo Battery. Matched with oil filled GTR Shocks (commonly found on more expensive hobby grade RC models) and proper off Road Rubber Tyres, it is suited for on-road and off-road terrains.
Electronic Stability Program
When the trucks driving occurs side slip or out of control,it can timely and effectively correct the car attitude and direction. The function and sensitivity of gyroscope sensor can be adjusted and turn off by the ESP knob of the transmitter.
GTR Front & Rear shock absorber
Large diameter oil-filled GTR shocks attach to the progressive rocker arms for silky-smooth damping. Threaded aluminum bodies feature collars for easy spring pre-load adjustment. Silicone bladders and X-ring seals prevent leaks for long-lasting performance.
Metal Differentials
The UDIPOWER 4-gear differentials feature massively larger ring and pinion gears that use over twice as much steel for extreme durability. The differentials are sealed and filled with heavyweight oil, giving them the performance feel of limited-slip differentials. Steel drive cups fit over huge 9mm hardened steel output shafts which ride on oversized sealed bearings.
Receiver
4 channel Receiver with built-in body electronic stability system(ESP)
Brushless Motor
3660-3000KV brushless motor power system with finned can for better heat dissipation.
Supersonic 60A Brushless ESC
1. All-weather waterproof and dustproof design (Note:please uninstall the cooling fan before using the ESC in water; keep clean and dry after use to avoid rusting of the connector)
2. Designed for RC model cars with excellent start-up, acceleration and linearity functions.
3. For sensorless brushless motor.
4. High current resistance and excellent heat dissipation.
5. Multiple protection functions: low voltage cut off to protection for Lithium or Nickel batteries/ESC overheating protection/motor overheating protection/throttle signal loss protection/motor blocking protection.
6. Built in switching mode BEC6.V5A/7.4V5A (switching mode), compatible with high torque and high voltage servo.
7. Easy to program and compatible with a smaller program cards.
Features:
High Bright LED Lights
·Domelights
·Controllable headlights
·Taillights
Waterproof Electronic Speed Control
·Integrated ESC
·Real-time telemetry
·Electronic Stability Program(gyroscope)
·Powered accessory ports
Decoration
·PVC material bodyshell, high toughness and not easy to deformation
·Front and rear bumper
·The wheels are also equipped with dummy brake discs integrated hex adapters
Wheels and Tires
·100mm off-road tires
Suspension
·Provides scale looks and authentic off-road dynamics
·Front and rear independent suspension damping
·High-efficiency metal drive shaft
Steering
·15KG metal gear waterproof steering servo
·Dual bellcrank design with bearings and integrated servo saver
·Solid non-adjustable steering links for rugged durability
Drivetrain
·Steel driveshafts
·Oil-filled limited slip front differential
·Heavy-duty splined front driveshaft
·Fixed-length steel rear driveshaft
Sealed Ball Bearing
Hardware with rust-resistant native oxid coating.
Specifications:
Model No.: UD1201
Assembly time: Install batteries
High Speed Bearings: The whole car
Battery: Include
Remote Control Distance:
Playing Time: 15 minutes
Battery capacity: 3s Lipo
Charger: Included
Completion Level: Ready-to-run
Differential: Two oil-filled gears
Drivetrain: Four Wheel Drive
Drive Type: Forward/Brake/Reverse
Final drive ratio:
Front wheel track: 231mm
Power Type: Electric
Tooth pitch:
Bauchfreiheit: 40mm
Internal gear ratio:
Motor type: Strong magnetic motor/brushless motor
Gear:
Product Length: 408.6mm
Product Width: 283.4mm
Product Height: 174.5mm
Product Weight: 2.03KG
Transmitter: Include
Rear wheel track: 230.8mm
Receiver: Include
Scale: 1/12
Servo: Include
Speed controller: Include
Spur gear: 38T
Suspension: Independent
Truck type: Stunt truck
Wheel base: 244.8mm
Type：Strong magnetic motor(UD1202)
Weight: 223g
Length: 81mm
Diameter: 35.5mm
Connector Type: 3.5mm bullet connectors
Type: Brushless Motor(UD1202PRO)
Weight:
Length:
Diameter:
Connector Type: 3.5mm bullet connectors
What’s In The Box:
Racing Truck with ESC and Motor
User Manual

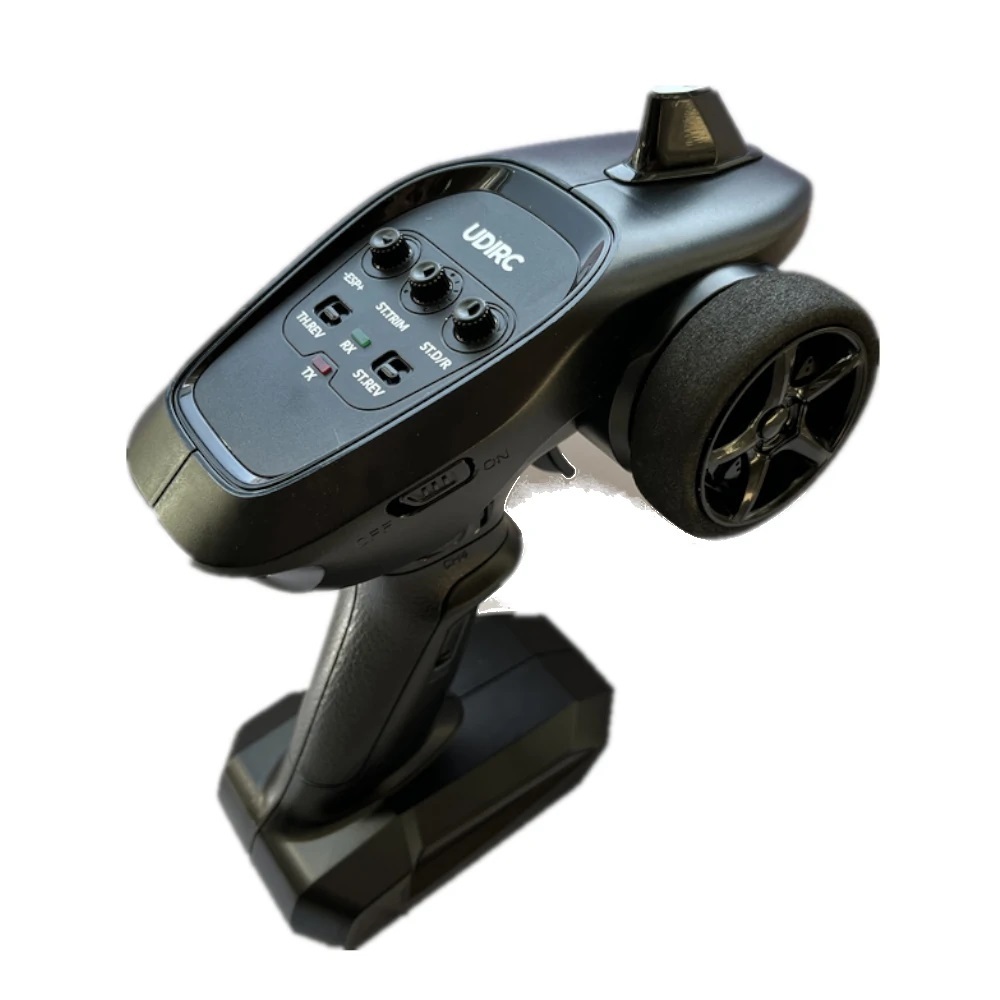

2.4GHz Transmitter
Maintenance tools
Rechargeable battery
USB Charger
What You’ll Need
Transmitter’s batteries
4×1.5V, AA battery
Four AA alkaline batteries for the transmitter
Recommended for Ages 14+
Suitable for ages under age recommendation with Adult supervision (Noting Care and Warranty Policy)
Note:
Please note that this is a hobby grade high-performance remote-control vehicle.
Damages incurred by crashes, impacts and misuse are not covered by warranty.
All warranty claims are assessed on a case by case basis as per our warranty terms and conditions.
By purchasing this RC vehicle, you have agreed 1-month warranty on Rechargeable Batteries and a 3-month limited warranty terms highlighted below:
This Remote-Control Car is covered by a 3-Month Limited Warranty.
Limited includes;
- 1 month warranty on Rechargeable Batteries
- 1 month for failure or mechanical and non-electronic parts (please see Wear and Tear section below)
- 3 month for major electronic components (esc, remote controller and receiver)
Warranty excludes:
- Damages incurred to the product caused by misuse or abuse of the product, i.e. high speed impacts and crashing the product
- Tampering, or modifying of product in any kind
- Use of any unapproved 3rd party accessory with product
- Poor battery maintenance - please see Battery maintenance section below.
“Wear and Tear” parts are excluded from any Warranty when product has been used; whether in, or outside any and all parameters outlined in the products’ supplied user manual.
List of “Wear and Tear” parts:
- All Gears, their respective cogs, and Motors
- Wheels, tyres, wheel assembly and drive shafts
- Chassis, and all plastic parts
PLEASE NOTE: Not all R/C toy’s come with Power Switch. To power off your product, should it not include a power switch, is to disconnect the battery from the product
Proper use of the remote controller:
- The remote controller is a precision digital proportion control.
- It is recommended to use precise gentle steering control.
- The steering wheel control knob is to be operated gently. It is recommended to use 3 fingers to steer the RC Vehicle gently left to right.
- Do not aggressively steer the control knob as this could damage the steering knob.
- Damages caused by mis-use and mis-handling of the remote controller is not covered by warranty.
Proper Battery Maintenance include:
- Charge the battery before first time use, before or after any use, storage or use after storage
- Allow for battery to be cool to touch prior to charging
- Disconnect the battery from product when not in use. Leaving the battery connected to the product over time (when not in use) WILL damage the battery
Care
This Remote-Control Car is a “Hobby Grade” product, which contains internal and external parts that are replaceable by the end user.
Over a period of use, parts will “Wear & Tear”, which is common, and will require replacement.
(The “period” can vary depending on the environment the product is used)
The supplied user manual includes’ a Parts List for all internal and external Wear & Tear items, items surrounding the wheel assembly, as well as gears, that are available for purchase on our website.
Please contact us should you require a part not listed on our website.
| SKU | TR1976 |
| Barcode # | 8793000026980 |
| Brand | UDI |
| Shipping Weight | 4.0500kg |
| Shipping Width | 0.315m |
| Shipping Height | 0.180m |
| Shipping Length | 0.530m |
| Shipping Cubic | 0.030051000m3 |
| Unit Of Measure | ea |
