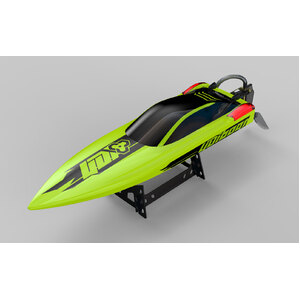

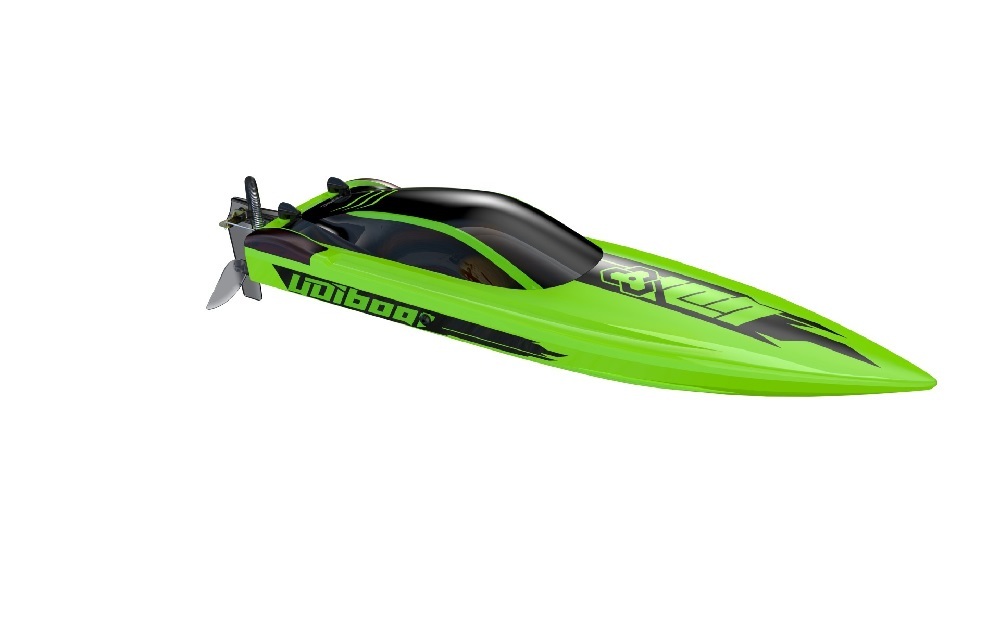

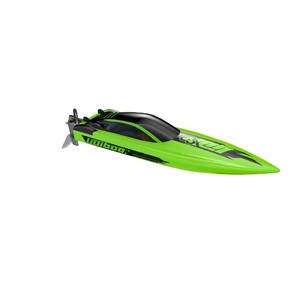

UDI 018 Brushless Remote Control RC Racing Boat with Lights
RC Boat that Rips through water at speeds up to 35+kmph!
SKU: TR2160
UDI018 RC Brushless Large Racing Boat with Lights
RC Boat that Rips through water at speeds up to 40+kmph!
This UDI018 is a brushless remote control racing boat is an absolute beast. Brushless RC Boat is capable of speeds up to 40km/h with its powerful water cooled brushless motor. A Radio Control Boat that is equipped LED lights for better visibility and a 2.4GHz remote controler which provides superior range up to 150 meteres over standard FM versions. It has an ingenious design that allows for the boat to revert back to upright position by applying the throttle during accidental flips. Supplied with a rechargeable lithium battery providing up to 8 minutes of play time. Remote controller requires 4 x AA batteries.
UDI018 Brushless Muscleboat
40km/h on 3s LiPo all-out! Mosasaurus means business with its super-rigid, 22-inch deep-V hull, smooth, cable-drive efficiency, innovative water cooling system, and precision drive controls. The clean, modern hull design is built up in layers for maximum rigidity and its bold color makes a statement on the water.

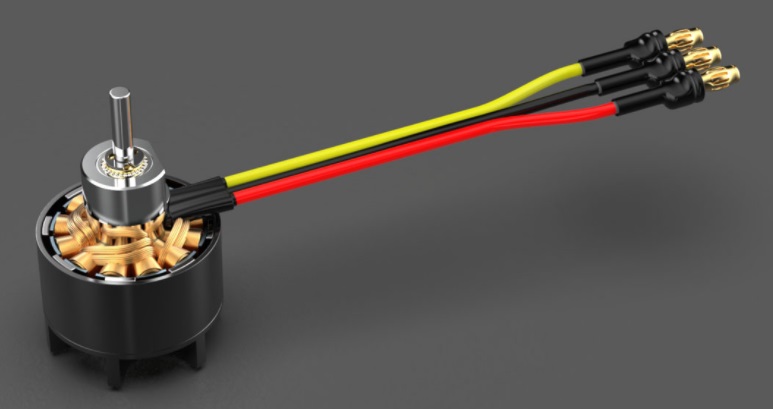

KV3100 brushless horsepower delivers the muscle you want with the reliability you expect from UDIRC. The extra voltage and current maximizes the potential of the KV3100 motor for extreme 40km/h speed. Cooling water is routed through the draft tube and then into a unique sealed motor jacket that allows cooling water to flow directly against the motor for maximum possible heat transfer. The boat keeps its cool, run after run, for trouble-free all-day fun.

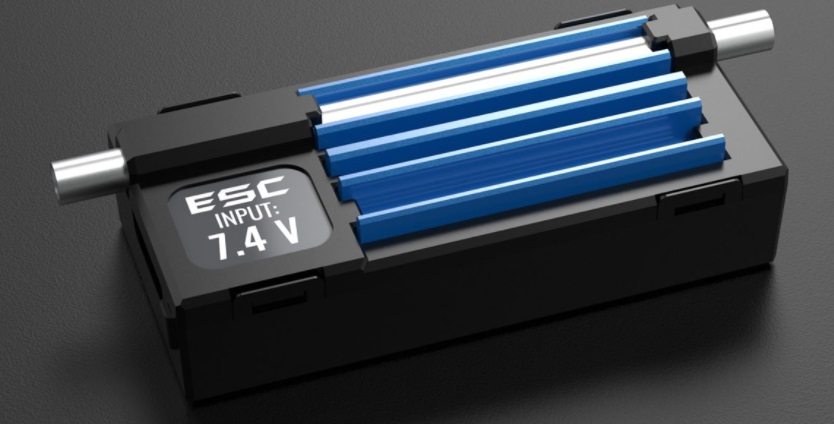

Innovative waterproof design. Integrated water cooling and heat sink. Built-in low-voltage detection for batteries. Thermal overload protection. Voltage overload protection. Locked rotor protection. Throttle Neutral Setting protection.

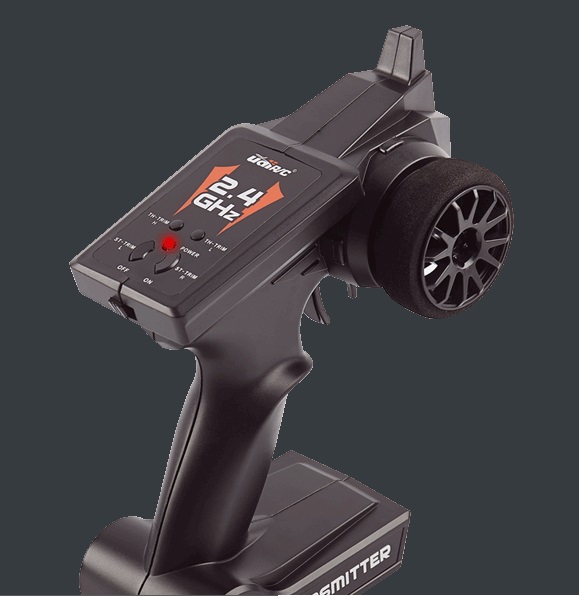

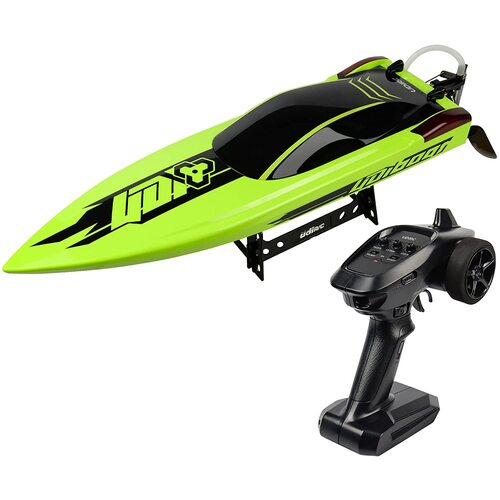

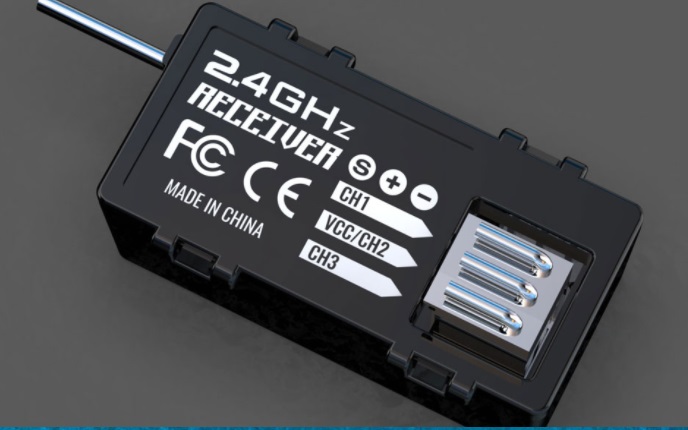

UA31 radio system arrives with a full complement of tuning features; long-range, high-output, 2.4GHz signal. Also the double protection of Low battery alarm and Out of range alarm, allows you to grasp sailing status of the boat, to avoid lost and get rid of concerns.
Makes it possible to experience all the extreme power, speed, and acceleration that was engineered into UDIRC models by making it much easier to control the boat in water conditions. Punch it off the line and Receiver goes to work sensing the boat’s direction and making steering corrections to provide straight-ahead full throttle acceleration without loss of control. Also works when turning, first making intuitive corrections to maintain the vehicle’s line, then hammer the throttle earlier in the turn for much faster exit speeds. UDIRC engineers developed superior tuning algorithms that run on high-speed, precision electronic components to create a system that works invisibly, in the background, without ever limiting throttle. Can be fine-tuned for different conditions by simply adjusting the multi-function knob on the transmitter.

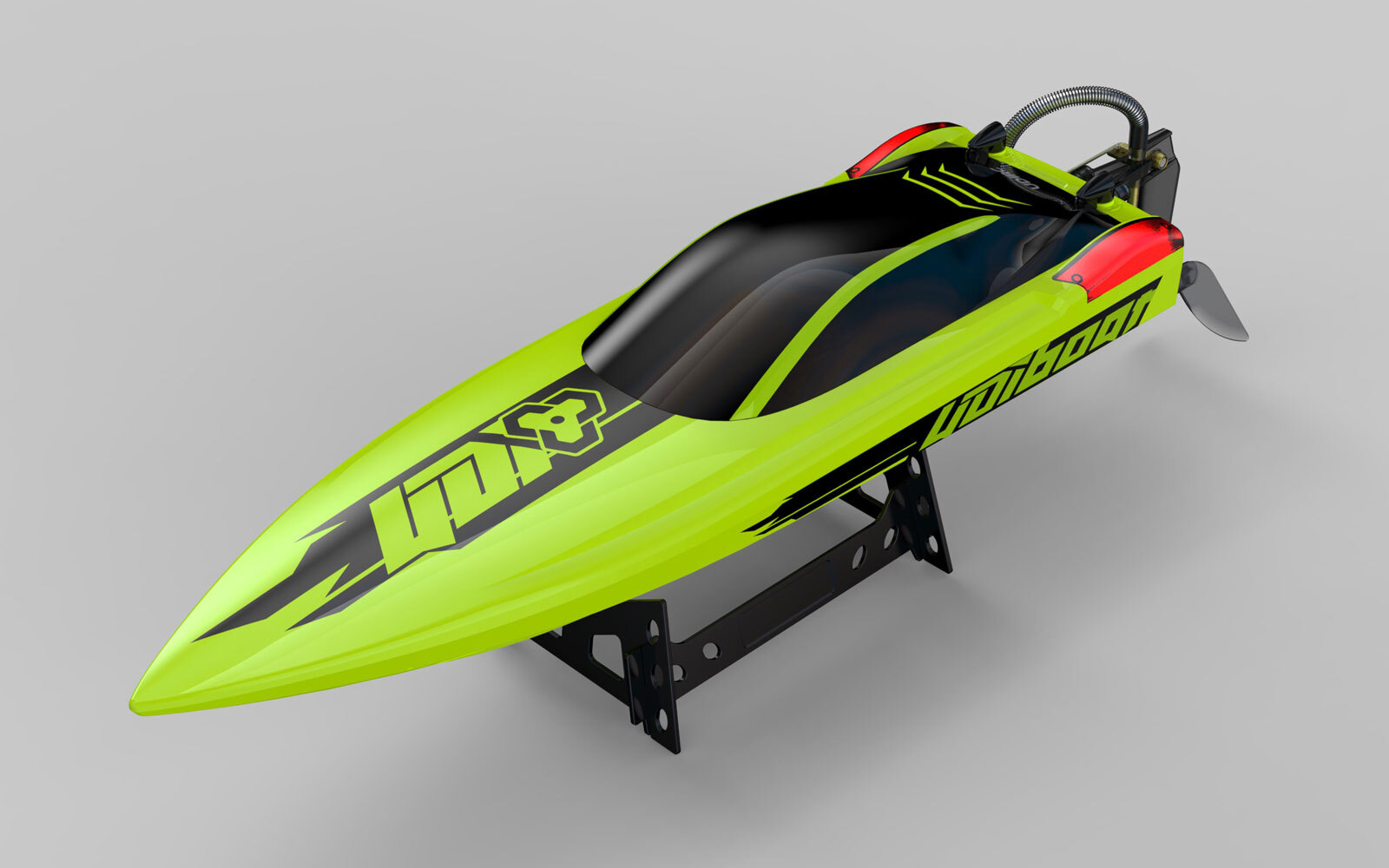

The Mosasaurus’s clean, modern hull design is built up in layers for maximum rigidity where it matters most, the transom and ride pad. Lightweight yet incredibly strong, Mosasaurus’s ABS hull is designed to withstand the stress of high-voltage brushless horsepower, without the weight penalty of a fiberglass hull. The transom bulkhead also incorporates bosses for the trim tabs, turn fins, rudder support, and drive strut, eliminating the need for additional hardware inside the hull. In the Mosasaurus’s bow, can be installed with rubber bumpers, adding security as it further stiffens the hull.

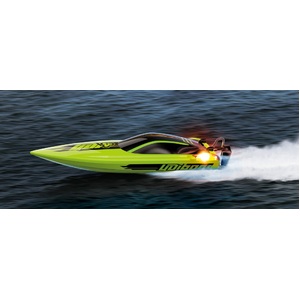

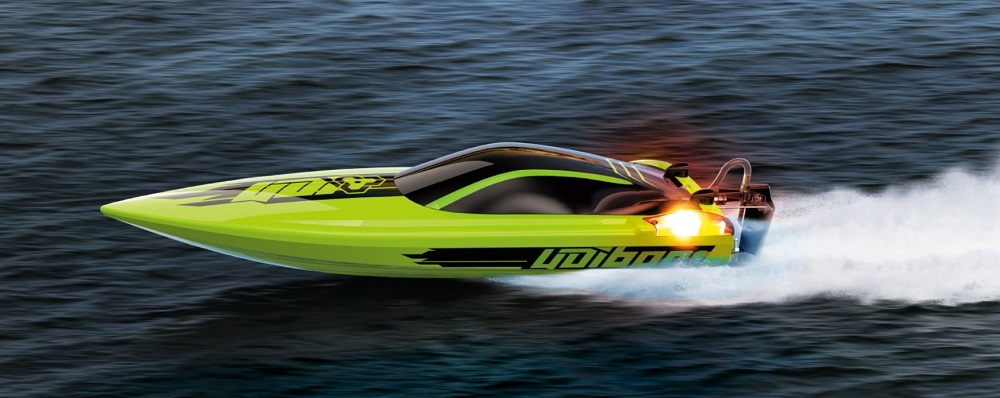

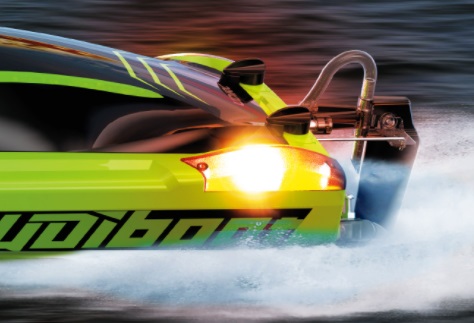

Controllable navigation lights

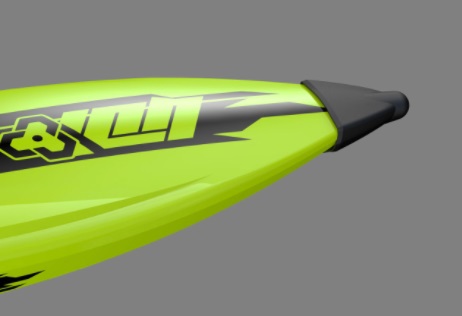

In the Mosasaurus’s bow, can be installed with rubber bumpers, adding security as it further stiffens the hull.

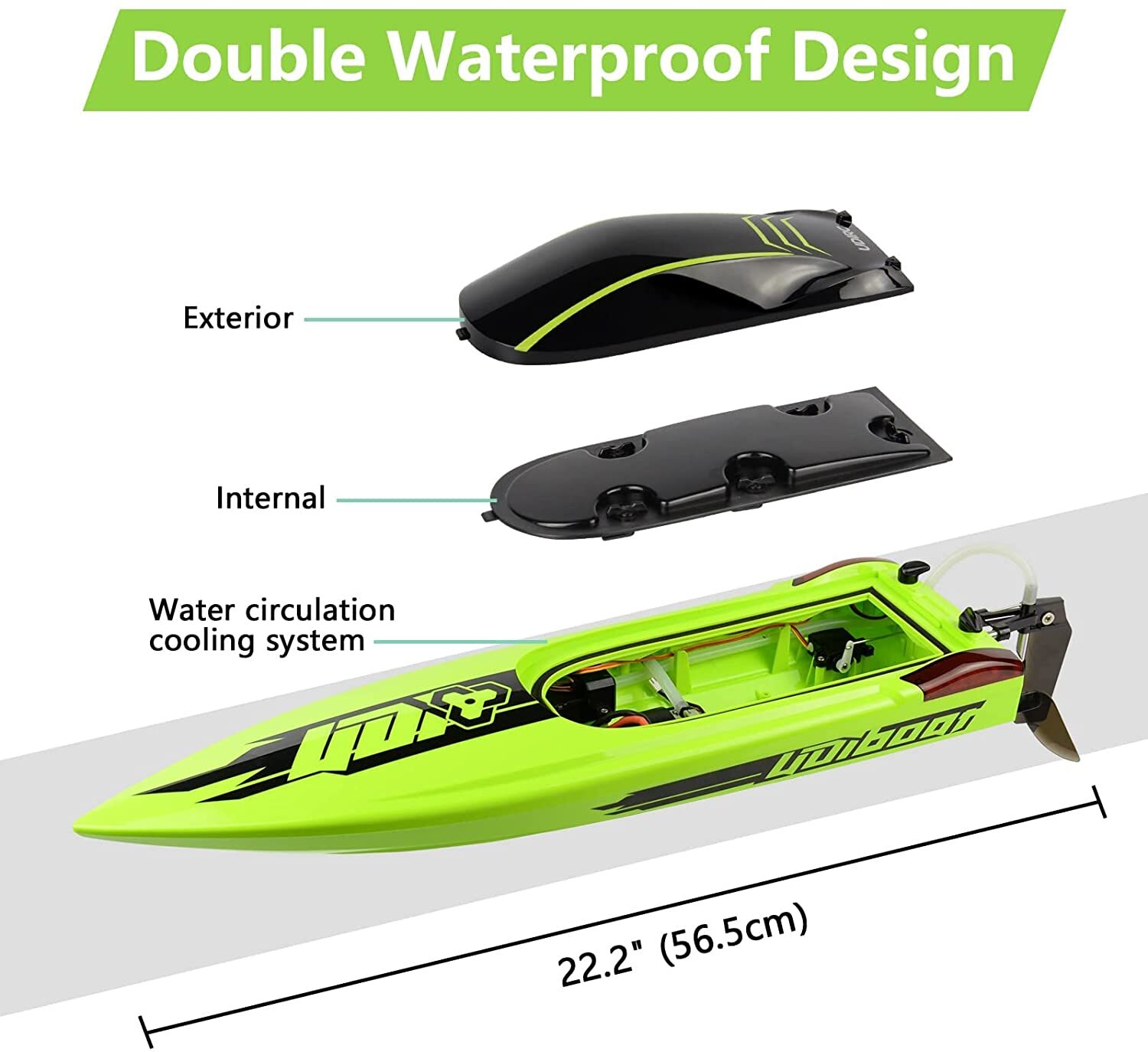

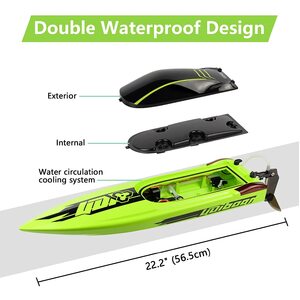

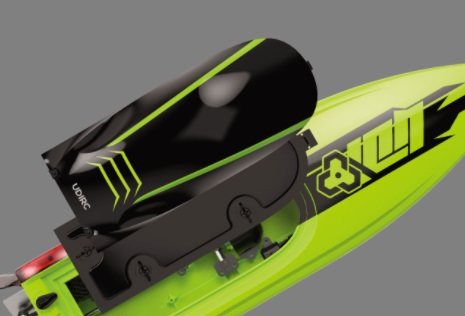

Double boat cover design for better waterproof performance.

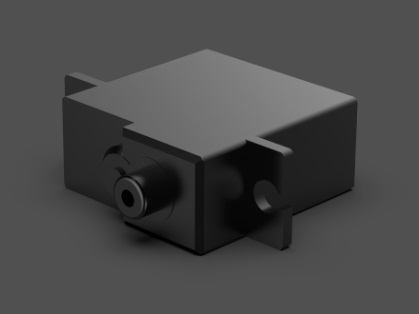

Mosasaurus demands a powerful steering servo for responsive performance, and UDIRC delivers with the high-torque servo. Ring seals make the servo completely waterproof.

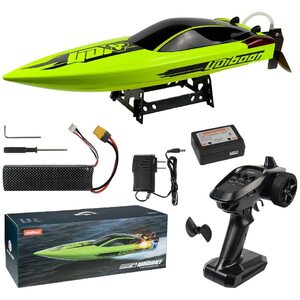

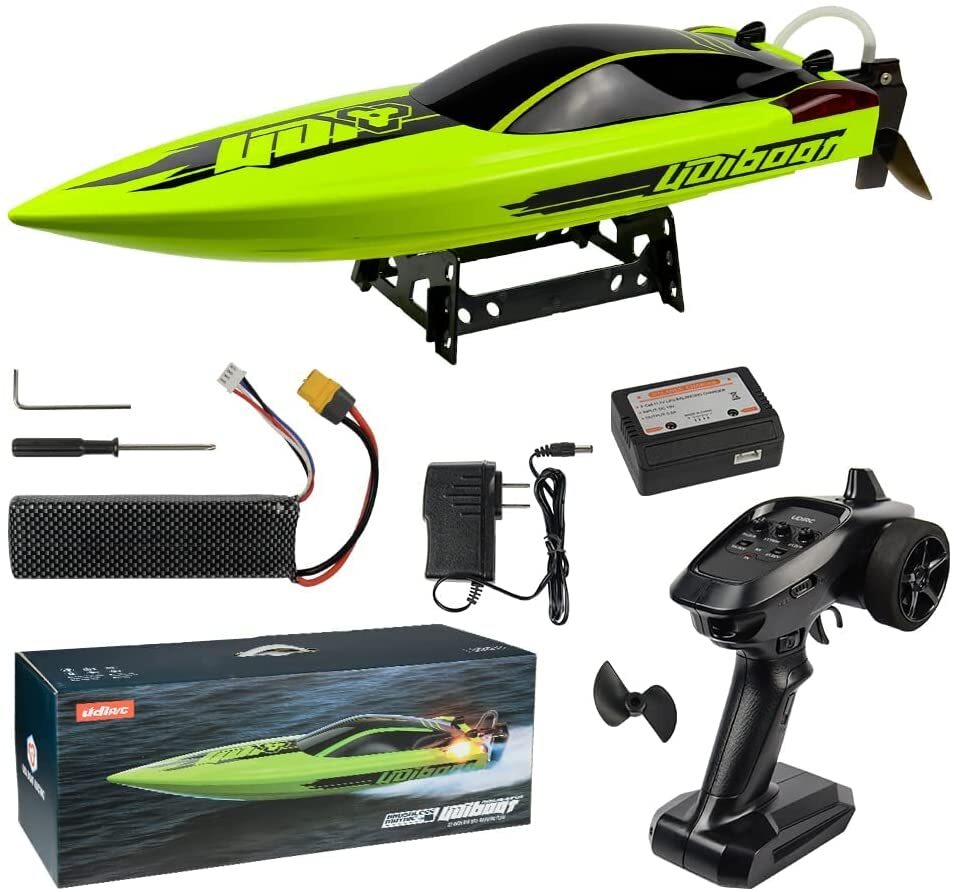

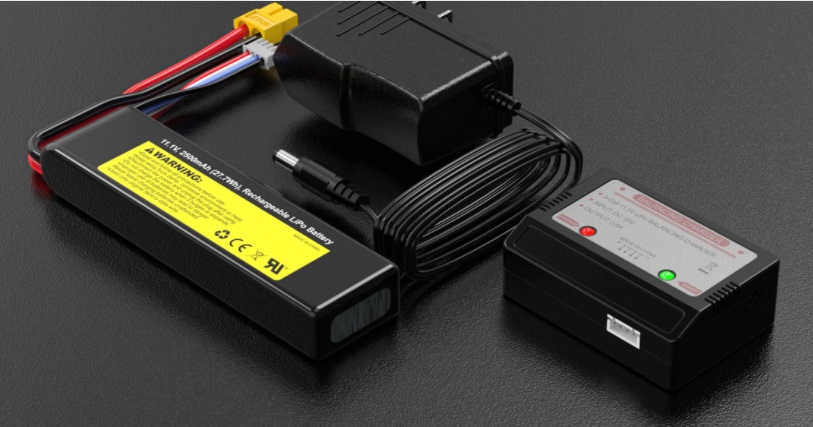

40km/h on 3s LiPo all-out! Contains a AD/DC Adaptor, balance charger and a 2500mAh lipo battery, reducing your worry about purchasing additional accessories and focusing more on the fun of driving.
RC Boat
Model: UDI018
Weight: 900g
Size: L577×W135×H137mm
Speed: About 40 km/h
Sailing Time: About 8 mins
Age Group: 14+ years old
Battery (Boat)
Capacity: 2500 mAh
Voltage: 11.1 V
Battery Type: LiPo
Charging Time: About 300 mins
Main Feature
Waterproof, Watercooled system,
Navigation rudder, High/Low Speed Mode,
Low battery alarm, Out of range alarm,

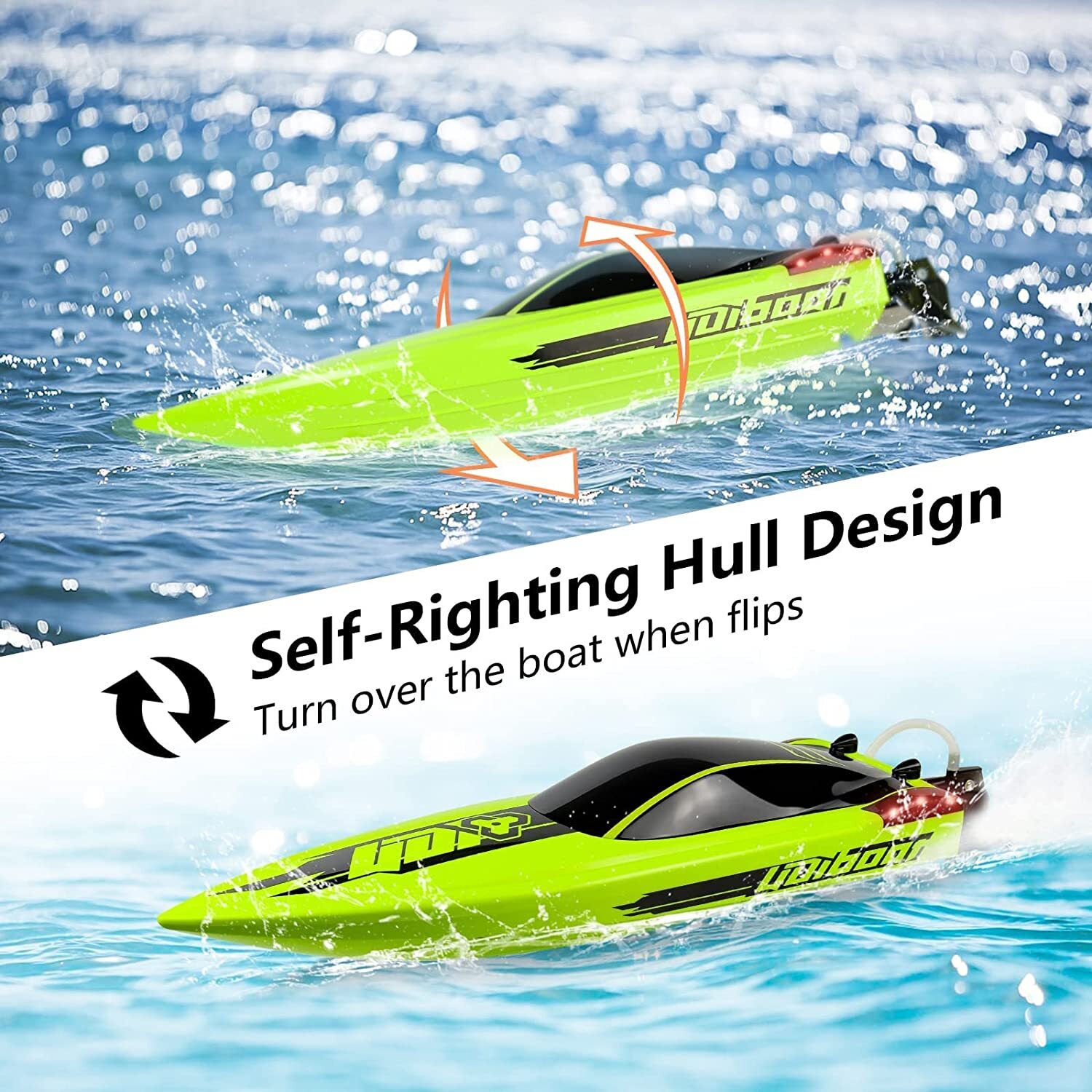

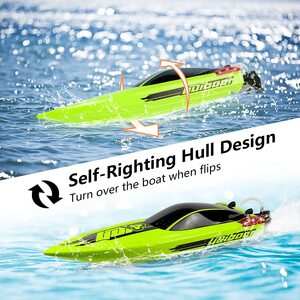

Self-Righting Hull Design,
Forward, Backward, Turn left/right
Controller
Operating Frequency: 2.4 GHz
Transmission Distance: About 100 m
Battery: 4×1.5 V Alkaline batteries AA
Charger
AC/DC adaptor, Output: 15V⎓800mA
3-Cell 11.1V LiPo BALANCING CHARGER
CLICK HERE TO SEE OTHER BRUSHLESS BOATS IN OUR RANGE
CLICK HERE TO SEE OTHER RC BOATS IN OUR RANGE
Remote Control Boat Care and Maintenance:
- Ensure that the RC Hull covers are properly installed.
- RC Boat hull is primarily designed for forward movement. Reverse function is seldomly used and typically only used to get out of embankments. Prolonged use will cause for the Boat to submerge like a submarine due to hull design and take on water.
- RC Boat has a natural bouyancy. Should the Rc Boat experience reduced bouyancy, please inspect inside the RC Boat hull.
- Afer use, ensure to remove excess water from the RC Boats hull and Pat dry with a dry cloth. Leave the cover off to air dry.
- Once dry, use water displacement spray to lubricate to prevent oxidisation or corrosion.
- RC Boats are not recommended for use in salt water.
Ensure that RC Boat Hull Hatch is properly secured when in use. Failure to do so will allow water to enter hull which may damage the RC's electronics.
Improper usage of the RC Boat will void warranty.
Warranty:
This product is covered by a 3 Month Limited Warranty if purchased on or over the value of $50.
Limited includes;
- 1 month for defects in construction and manufacturing (non-electronic parts)
- 12 month for electronic integrity properties
Remote Control Boat Care and Maintenance:
- Ensure that the RC Hull covers are properly installed.
- RC Boat hull is primarily designed for forward movement. Reverse function is seldomly used and typically only used to get out of embankments. Prolonged use will cause for the Boat to submerge like a submarine due to hull design and take on water.
- RC Boat has a natural bouyancy. Should the Rc Boat experience reduced bouyancy, please inspect inside the RC Boat hull.
- Afer use, ensure to remove excess water from the RC Boats hull and Pat dry with a dry cloth. Leave the cover off to air dry.
- Once dry, use water displacement spray to lubricate to prevent oxidisation or corrosion.
- RC Boats are not recommended for use in salt water.
Ensure that RC Boat Hull Hatch is properly secured when in use. Failure to do so will allow water to enter hull which may damage the RC's electronics.
Improper usage of the RC Boat will void warranty.
Warranty excludes:
- Damages done to product caused by failure to understand product prior to use or misuse of the product, i.e. crashing product
- Tampering, or modifying of product in any kind
- Use of any unapproved 3rd party accessory with product
- Poor battery maintenance
Care:
This Remote-Control Boat is a “Hobby Grade” product. This boat was constructed for the purpose of high performance on still or calm waters, while maintaining a level of water ingress protection.
Ensure that the RC Boat Hull Hatch is properly secured when in use. Failure to do so will allow water to enter hull which may damage the RC's electronics.
Under no circumstances, should this boat be subjected to;
- any level of impact. Impact can damage the boats water ingress protection integrity, as well as any electronic parts
- be modified by any means necessary
- be used on Salt-Water or Chlorinated Water, including domestic or public swimming pools
After use, please ensure the following steps;
1. before opening the hull, wipe dry all surface of the boat
2. disconnect and remove battery from the boat, ensure battery and its terminals are always dry
3. ensure the internals of the boat is dry
4. please wipe dry any parts of the boat and keep hull lid removed from the boat before placing in storage
PLEASE NOTE: Not all R/C toy’s come with Power Switches. To power off your product, should it not include a power switch, is to disconnect the battery from the product.
Proper Battery Maintenance include:
- Allow the battery to be cool to touch prior to charging
- Charging the battery before first time use, before or after any use, storage or use after storage
- Disconnect the battery from product when not in use. Leaving the battery connected to the product over time (when not in use) WILL damage the battery
- Proper battery maintenance is imperative for longevity. You must keep the battery fully charged before use and after use or prior to storage.
Failure to comply to these specific guidelines WILL void warranty on this boat.
1 Month Warranty on Rechargeable Batteries.
Lithium Polymer Charging/Discharging & Safety Information
Lithium Polymer Safety Tips: Lithium Polymer cells are a tremendous advance in battery technology for RC use. However, due to the chemistry of lithium cells, there is a possibility of fire if charging is not properly done. It is unavoidable due to the nature of lithium itself. This is no different from many things we use in daily life – knives, kitchen cleaners, automobiles, for a few examples – which are inherently dangerous, but which can be used safely by adhering to simple rules and precautions.
- Batteries should NEVER be left unattended while charging.
- Be absolutely sure that the Lithium Polymer charger settings are correct for the battery pack being charged – both voltage and current settings.
- Lithium Polymer must be CHARGED and STORED in a fire-safe container like a Li-po Safe Pouch / Bag.
- Do not charge batteries near flammable items or liquids.
- Keep a dry fire extinguisher nearby or a large bucket of dry sand, which is a cheap and effective extinguisher.
- Never charge inside an automobile even when parked.
- KEEP BATTERIES AWAY from children and pets at ALL times.
Connection: Be sure that the correct polarity is observed when connecting battery packs to charger or ESC.
RED = POSITIVE (+)
BLACK = NEGATIVE (-)
Charging/Discharging: Your new battery pack arrives between 30-60% SOC depending on how it is shipped. Charge your pack fully before first use. Charge your LiPo battery pack at 5C or less on the LiPo setting only. You must use a balance charging system. Otherwise, you risk your pack becoming severely out of balance over time, which will significantly decrease the lifespan.
Ex: If charging a 4000mah LiPo pack at 1C, you would be charging it at 4 Amps.
Ex: If balance charging a 4000mah LiPo pack at 5C, you would be charging it at 20 Amps.
Please refer to your owner’s manual regarding the recommended ESC cut off voltage for your particular application prior to first use to avoid accidentally over-discharging your batteries.
Do NOT charge your LiPo packs on a NIMH/NICD charger. Your charger must be designed for LiPo cells. Do not charge above 4.2V per cell, over discharge under 3V per cell. Never leave LiPo packs unattended during charging or after a crash in your vehicle. Don’t leave the battery pack plugged into a vehicle while not in use. The pack can still discharge to an unsafe level and damage the pack even if all components are turned off.
It is dangerous to draw more power than what the pack is rated for. This will void any warranty on the pack and can also cause your battery pack to ignite into flames. The temperature of the pack should never exceed 140F degrees. If it does, you may need a pack that is rated to handle more power.
Storage Procedure: When not using your LiPo/Li-Ion battery pack, store it at 60% of the pack’s rated capacity. Make sure to cycle your packs at least once per month since leaving them on the shelf for a prolonged period of time can cause the packs to get severely out of balance, puff/swell or even go dead.
Balancing taps on LiPo/Li-Ion Packs: All LiPo/Li-Ion packs come standard with a JST-XH style balancing tap (white connector), which is compatible with most industry standard balance chargers. Always balance charge your pack before each use as this “matches” the voltage of each cell to give you the highest performance and longest life.
Handling Cautions:
- Never leave batteries inside a car on a hot day or any other place where temperature may exceed 140F / 60C.
- Although environmentally friendly, lithium polymer cells must be FULLY discharged before disposal. Use a resistor setup (light bulbs, for example) to accomplish this, to avoid the possibility of a short-induced fire after disposal.
- Immediately discharge damaged batteries at 1/2 C rate and dispose.
- Do not put the loose cells in a pocket, bag, or drawer where they could short-circuit against other items, or the battery tabs could be pressed against each other.
- Do not place the loose cells on any conductive surface, such as a metal-topped table.
- We recommend purchasing pre-assembled packs rather than assembling packs from loose cells.
- Take care that the cells are not punctured, especially by metallic objects like hobby knives.
- If the electrolyte in the cells should get on your skin, thoroughly wash with soap and water. If in the eyes, rinse thoroughly with cool water. Immediately seek medical attention for this, or for burns.
- Although our batteries are now water sealed, we do not recommend submerging our batteries for extended periods of time. The battery packs will be protected during normal rc conditions.
All Lithium Polymer Batteries we carry are only approved for rc use, and may not be used in any other application. Battery discharging, charging, electric motors, spinning propellers, and flying models all have the potential for serious injury to persons and damage to property. In purchasing these products, the user agrees to accept responsibility for all such risks, and not to hold the battery manufacturer, distributors, or retailers - (all including owners and employees) -responsible for any accident, injury to persons, or damage to property.
The use of Lithium Polymer batteries in radio-controlled models is to be considered experimental, and there is no warranty, expressed or implied, by the manufacturer, distributors, or retailers with respect to the replacement of vehicles, chargers, or damage to property or person, nor any other use nor aspect unless otherwise stated.
LiPo Battery Warming Devices / ”Bumping” LiPo Packs:
Do not, under any circumstances, attempt to “heat up” your batteries or increase the voltage of a pack above 4.2V per cell using these devices or techniques. Some insidious lithium polymer retailers/distributors have suggested using these devices and techniques to increase the performance of your lithium polymer packs. THIS IS NOT SAFE AND IS LITERALLY PLAYING WITH FIRE!
Devices on the market that heat up lithium polymer batteries can increase the risk of a fire. Lithium polymer cell manufacturers suggest that exceeding 140 degrees is NOT a safe temperature for a lithium polymer cell. At 140 degrees, the pack can become unstable and very dangerous. The small increase in performance is not worth the risk of a fire. PLEASE STAY SMART AND SAFE BY NOT USING THESE PRODUCTS!
Some retailers/distributors of other brands of lithium polymer batteries have suggested that their customers and racers “bump” the voltage of their packs using settings other than the lithium polymer setting on their charger. The manufacturers of lithium polymer cells suggest a voltage range of 3V-4.2V. Increasing voltage above 4.2V per cell is not safe. You should never attempt to charge your packs beyond the voltage set for lithium polymer packs on your lithium polymer charger. Using other battery settings to “bump” the voltage beyond 4.2V per cell can cause fire and injury. The small increase in performance is not worth the risk of fire. PLEASE DO NOT USE THESE METHODS!
18650 Lithium-Ion Warning and Safety Tips:
WARNING - The user must have an appropriate understanding of the potential dangers of LITHIUM-ION BATTERIES before purchase and usage. No express or implied guarantee of compatibility, suitability, or fitness for any particular purpose or device can be made. This battery is manufactured and sold for the intended use of system integrations with proper protection circuitry or battery packs with a BMS (battery management system) or PCB (circuit board/module). This battery is neither designed nor intended to be used with an unprotected E-CIGARETTE, VAPORIZER, or similar device.
USAGE OF THIS BATTERY IS AT YOUR OWN RISK!
DO NOT USE WITH UNPROTECTED E-CIGARETTE, VAPORIZER, OR SIMILAR DEVICE
DO NOT STORE LOOSE OR IN A POCKET, PURSE, ETC. ALWAYS USE A PROTECTIVE CASE OR BOX FOR STORAGE AND TRANSPORT
BATTERIES MAY EXPLODE, BURN, OR CAUSE A FIRE IF MISUSED OR MISHANDLED
ONLY use with proper protection circuitry
DO NOT short circuit intentionally or unintentionally
KEEP AWAY from metal/conductive objects to prevent short circuiting
DO NOT use if battery, wrapper or terminal insulator is damaged or torn
DO NOT over-charge or charge above the maximum voltage rating
DO NOT over-discharge or exceed the continuous discharge rating
DO NOT modify, disassemble, puncture, cut, crush, or incinerate
DO NOT expose to liquids or high temperatures
KEEP AWAY from pets and children
ALWAYS charge in or on a fire-proof surface and never leave batteries charging unattended
ONLY use a smart charger designed for this specific type of battery
DO NOT mix and match brands and models, old and new, used and unused batteries
STOP immediately if while charging/storing/using the battery it emits an unusual smell, feels hot, changes color or shape, or appears abnormal in any way
It is your responsibility to determine that your charger or device is functioning properly
If exposed to battery electrolyte, flush with water immediately and/or immediately contact a physician or emergency services
DO NOT throw away in trash; contact your local jurisdiction for proper recycling or disposal
SKU | TR2160 |
Barcode # | 9351634041596 |
Brand | UDI |
Shipping Weight | 2.1400kg |
Shipping Width | 0.250m |
Shipping Height | 0.210m |
Shipping Length | 0.600m |
Shipping Cubic | 0.031500000m3 |
Unit Of Measure | ea |
Assembled Length | 0.280m |
Assembled Height | 0.120m |
Assembled Width | 0.370m |
