Uno R3 Development Board with Wi-Fi for Arduino Projects
Uno Board with ESP8266 Wifi Function
SKU: TA0826
$49.95
RRP $99.95
In Stock
Uno R3 Development Board with Wi-Fi for Arduino Projects
Uno Board with ESP8266 Wifi Function

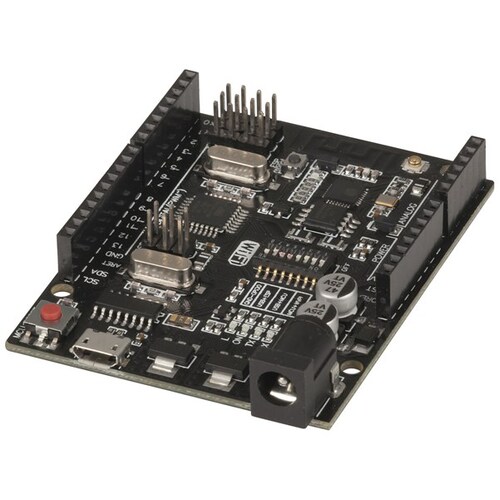

UNO board with an integrated ESP8266 board, which makes it easy to connect your projects to the cloud without the need for additional modules. Features the ATmega328P and standard UNO layout, and includes a set of DIP switches to configure the serial connections.
Specifications
| Transmission frequency : 2.4GHz |
| Transmission power : 10mW |
| Transmission range : 100m |
| Receiver Antenna Style : Internal Antenna |
| Transmitter Antenna Style : Internal Antenna |
| Length : 65mm |
| Width : 50mm |
| Height : 15mm |
| Weight : 25g |
| Packaged Volume : 0.17l |
| Packaged Weight : 0.03kg |
| Packaged Length : 9.9cm |
| Packaged Width : 9.9cm |
| Packaged Height : 1.7cm |
| USB Port Types : USB Micro Type B |
| Number of USB ports : 1 ports |
| Microcontroller : ATMega328 + ESP8266 |
| Supported Wi-Fi Modes : 802.11n802.11g802.11b |
Dowload the latest Drivers
CLICK HERE TO SEE OTHER DEVELOPMENT BOARDS
CLICK HERE TO SEE OTHER PRODUCTS FOR ARDUINO PROJECTS
3 Month Warranty
| SKU | TA0826 |
| Barcode # | 9351634069033 |
| Brand | iduino |
| Shipping Weight | 0.1000kg |
| Shipping Width | 0.130m |
| Shipping Height | 0.040m |
| Shipping Length | 0.100m |
| Shipping Cubic | 0.000520000m3 |
| Unit Of Measure | ea |
| Assembled Length | 0.080m |
| Assembled Height | 0.050m |
| Assembled Width | 0.090m |
