USB to 6 Pin TTL Serial Converter Module for Arduino Projects
Connect MCU to your computer easily
SKU: TA0240
$5.95
RRP $12.95
Sold Out
USB to 6 Pin TTL Serial Converter Module for Arduino Projects
Connect MCU to your computer easily

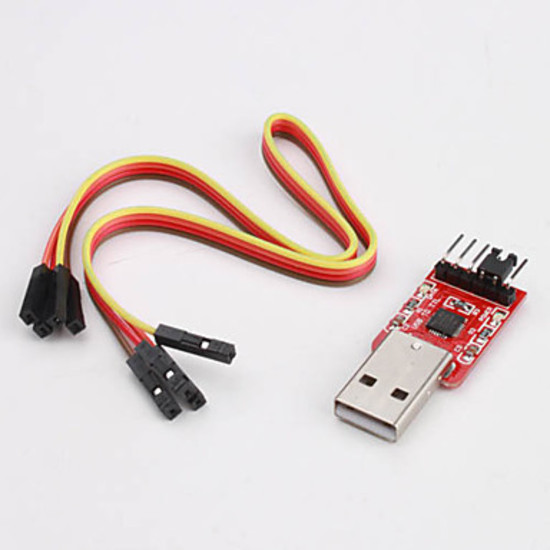

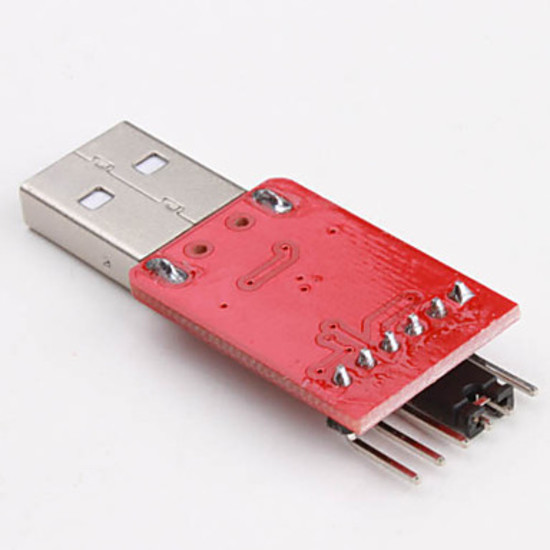

This is a USB 2.0 to TTL UART 6PIN CP2102 Module Serial Converter. Connect MCU easily to your computer! Stable and reliable chipset CP2102 USB specification 2.0 compliant with full-speed 12Mbps. Standard USB type A male and TTL 6pin connector. 6pins for 3.3V, RST, TXD, RXD, GND & 5V. All handshaking and modem interface signals. Baud rates: 300 bps to 1.5 Mbps. Byte receive buffer; 640 byte transmit buffer. Hardware or X-On/X-Off handshaking supported. Event character support Line break transmission. USB suspend states supported via SUSPEND pins. Temperature Range: -40 to +85. Supports Windows 98SE, 2000, XP, Vista, Window7, Mac OS 9, Mac OS X & Linux 2.40.
Click here to access Windows 10 8.1, 8 ,7 and Mac Drivers.
3 Month Warranty
| SKU | TA0240 |
| Barcode # | 9351634004133 |
| Brand | iduino |
| Shipping Weight | 0.0400kg |
| Shipping Width | 0.140m |
| Shipping Height | 0.020m |
| Shipping Length | 0.090m |
| Shipping Cubic | 0.000252000m3 |
| Unit Of Measure | ea |
USB 6pin to Arduino MiniPro
By: Stephen White on 30 November 2018Architecture is perfect. Device labelling isn't clear. Connections are difficult to ascertain. A wiring diagram is required (still not working).
(3)
USB->TTL Serial
By: Stephen Morgan on 22 March 2017As expected, arrived promptly, well packed. 3.3V output not enough for ESP8266 based boards, but OK for ATMEL 328s
(4)
