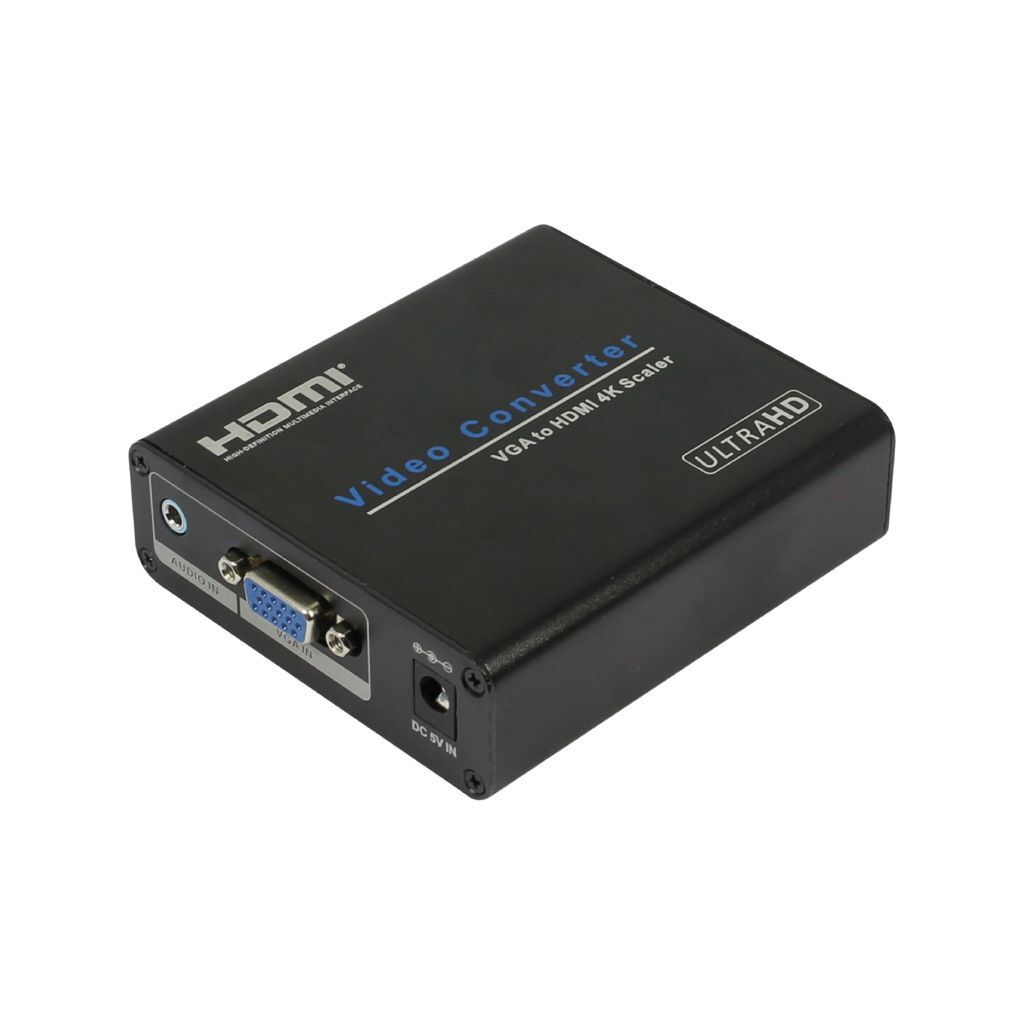

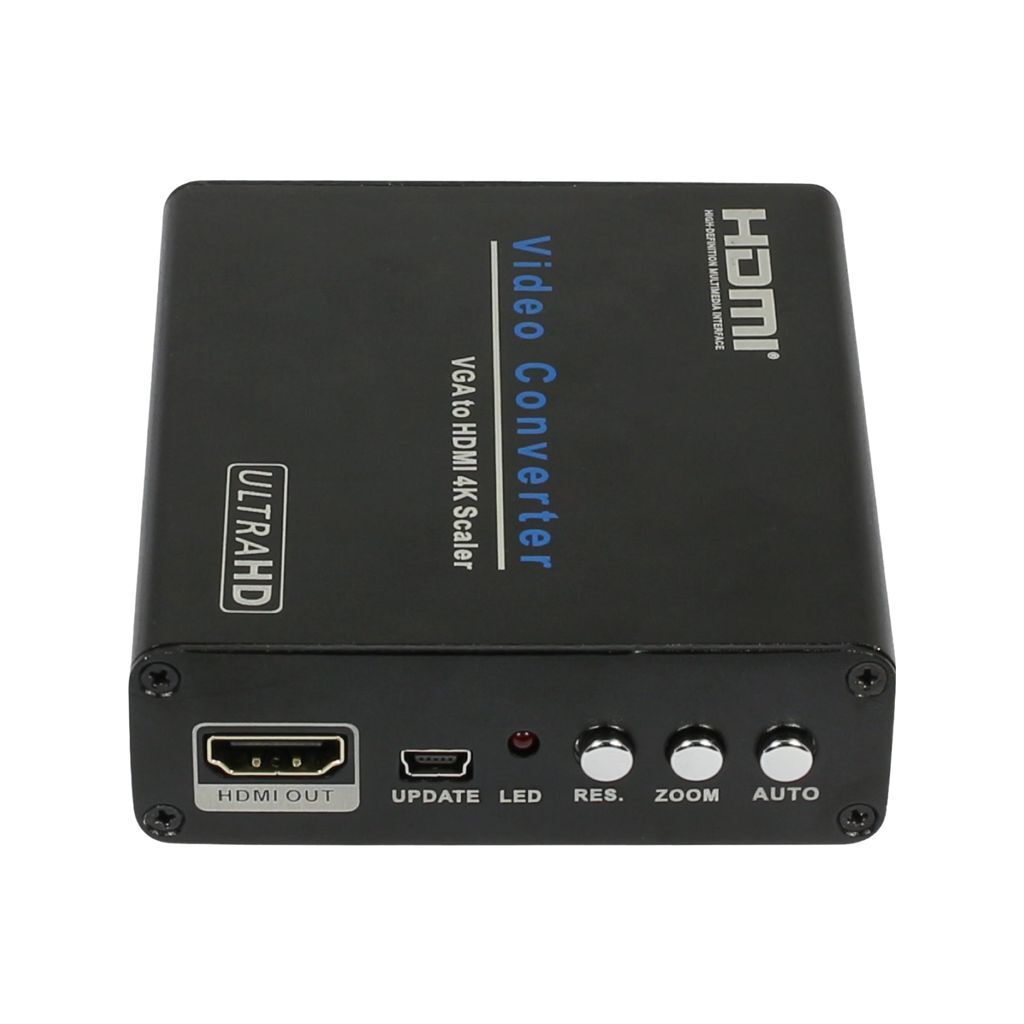

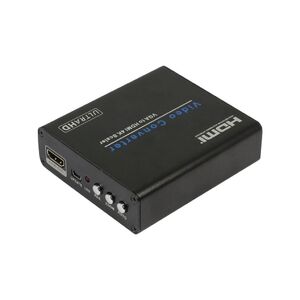

AnalogDiscoue VGA to 4K HDMI AV Converter

Converts and Upscales Analogue VGA to 4K HDMI Output

The VGA to HDMI 4Kx2K Scale Converter is a universal converter box for analog VGA input and upscales to Digital HDMI 4Kx2K@60Hz output. The analog to digital conversion in this module employs 10 bits maximal 297MSPS sampling, black/white level expansion, color transition improvement, dynamic range expansion, blue stretch, auto-detect and auto-convert the VGA signal to HDMI output. Making video come alive, delivering the sharpest, most realistic HD visuals available.

Features:

• No need to install drivers, portable, flexible, plug and play.

• Provide advanced signal processing with great precision, colors, resolutions, and details.

• Support Multi-VESA Standard VGA formats input.

• Support HDMI 4Kx2K@60Hz, 4Kx2K@30Hz,1080p@60Hz or 720p@60Hz output.

Package:

• VGA to HDMI 4Kx2K Scale Converter (1PCS)

• 5V1A DC Power Supply Adaptor (1PCS)

• Operation Manual (1PCS)

Specification:

• Input ports: 1xVGA, 1xEarphone, 1 x Min- USB

• Output ports: 1xHDMI

• Dimensions(mm): 93(D)x84(W)x28(H)

• Weight (g): 160g

• VGA input resolution:

• 640 x 480P@ 60Hz, 800 x 600 @ 60Hz, 1024 x 768P @ 60Hz, 1280 x 720P @ 60Hz,

• 1280 x 768P @ 60Hz, 1280 x 1024P @ 60Hz, 1360 x 768P @ 60Hz … 1920 x 1080P @ 60Hz.

• HDMI output resolution: 4Kx2K @ 60Hz, 4Kx2K @ 30Hz, 1080P @ 60Hz, 720P @ 60Hz

• Operating Temperature: 0°C ~ 40°C / 32°F ~ 104°F

• Storage Temperature: -20°C ~ 60°C / -4°F ~ 140°F

• Relative Humidity: 20 ~ 90% RH (Non-condensing)

• Power Consumption (Max): 3.5W

• ESD Protection: Human Body Model:

• ± 8kV (air-gap discharge)

• ± 4kV (contact discharge)
