Dual-Band Smart Wi-Fi 6 Router with Touchlink and Giga LAN

Wifi Mesh Network Range Extender

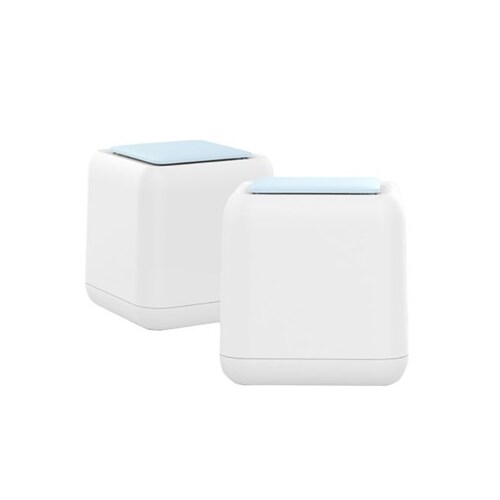

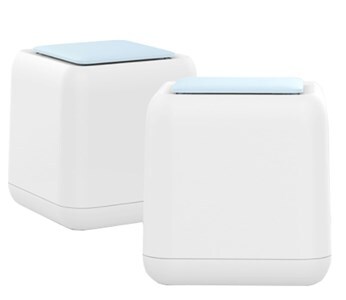

Provide seamless Wi-Fi in your entire home with this Mesh Wi-Fi system. As you move about your house with your Smartphone, laptop, and other portable Wi-Fi devices the mesh system will automatically connect you to the best possible signal to ensure the fastest speeds, all the time. The kit is provided with 1 x Mesh Router and 1 x Satellite module for a coverage area up to 260 square metres. Additional Satellite modules are sold separately for larger homes or for homes with a structure that reduces the transmission range. Includes all of the modern features you would expect, such as touch link function, simultaneous 5G, and 2.4G connections, and up to 1Gbps speeds.

Features:

- AC1200 Communication

- Can be expanded with additional satellite modules

- Complies with IEEE 802.11ac/a/n/g/b standards

- Simultaneous 5G 867Mbps and 2.4G 300Mbps connections for 1167Mbps of total available bandwidth

- 4 x Internal antennas provide omnidirectional stable signal and superior wireless coverage

- Provides 10/100/1000Mbps Auto-Negotiation Ethernet WAN/LAN ports

- Supports by PPPoE, Dynamic IP,static IP and WISP access to the Internet

- Built-in DHCP server with automatic dynamic IP address distribution

- Supports touch link function, easy to share Wi-Fi with your devices

Specifications:

Frequency Range: 2.4GHz & 5GHz

Transmit Power: 20DBm Max.

Sensitivity: 802.11b: -93dBm /802.11g: -73dBm /802.11a: -76dBm

Speed:

Band 1: 300Mbps @ 2.4GHz

Band 2: 867Mbps @ 5GHz

Wireless Security: WPA / WPA2, WPA-PSK/ WPA2-PSK encryption

Antennas: 4x3dBi Omni Directional Internal

Coverage Area: 260m2

Ports:

Router: 1 x10/100/1000Mbps WAN PORT, 1 x10/100/1000Mbps LAN PORT, 1x10/100Mbps LAN PORTS

Satellite: 2 x10/100/1000Mbps LAN PORT, 1x10/100Mbps LAN PORTS

Flash: 64MB

RAM: 512MB DDR2

Specifications

Data Transfer Rate : 11Mb/s, 867Mb/s

Dimension details : Mesh Network Device 1

Length : 90mm

Width : 90mm

Height : 95mm

Weight : 291g

DC Plugpack Voltage : 5V, 5V

DC Current Draw : 2A, 2A

AC Plugpack Voltage : 100V, 240V

Suitable PSU Included : true

Packaged Volume : 5.09l

Packaged Weight : 1.16kg

Packaged Length : 31.5cm

Packaged Width : 11.7cm

Packaged Height : 13.8cm

Type of Hardware : Hub

Speed of Transmission : 867Mb/s

Dimensions details : Mesh Network Device 2

Length : 90mm

Width : 90mm

Height : 95mm

Weight : 291g
