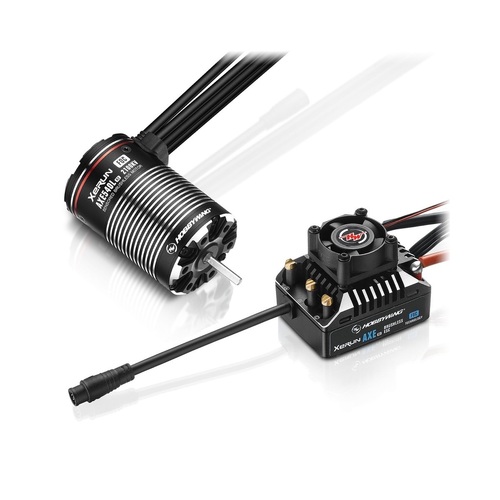

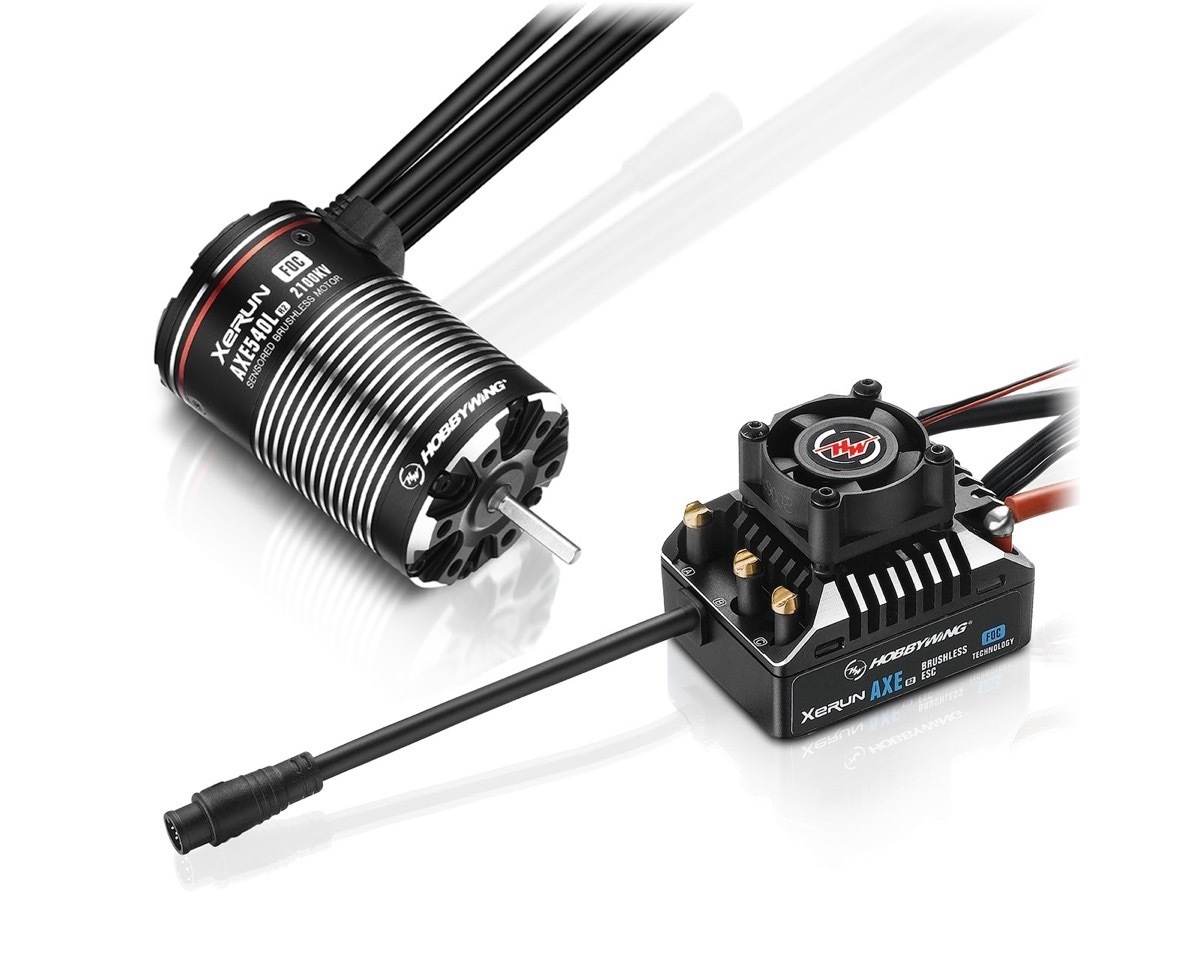

XERUN Combo AXE540L R2-2100KV FOC System Brushless Motor and Electronic Speed Controller Set

Brushless Motor & ESC Upgrade for RCs

Specifications:

XERUN AXE R2 FOC ESC:

Cont./Peak Current: 80A/480A

Input Voltage: 2-3S LiPo, 6-9S NiMh BEC

Output: 6V/7.4V

Switchable, Continuous Current of 6A (Switch-mode)

Input wires: Red-Black-12AWG-200mm

Input connector: XT60

Programming Port: Built-in

Bluetooth Firmware: iOS or Android smartphone (installed with the HW LINK app)

Size / Weight: 47.4(L)x36.2(W)x26.5(H)mm/ 108g (Included input wires)

XERUN AXE 540L Motor:

Type: 1/10-1/8th FOC brushless motor (Patented)

Waterproof: Yes

Motor Diameter: 36.0mm (1.42in)

Length: 57.8mm (2.28in)

Shaft Diameter: 3.175mm (0.125in)

Pole: 4 Kv: 2100Kv

Input Voltage: 2-3S

No Load Current: 2.7A

Weight: 212g
