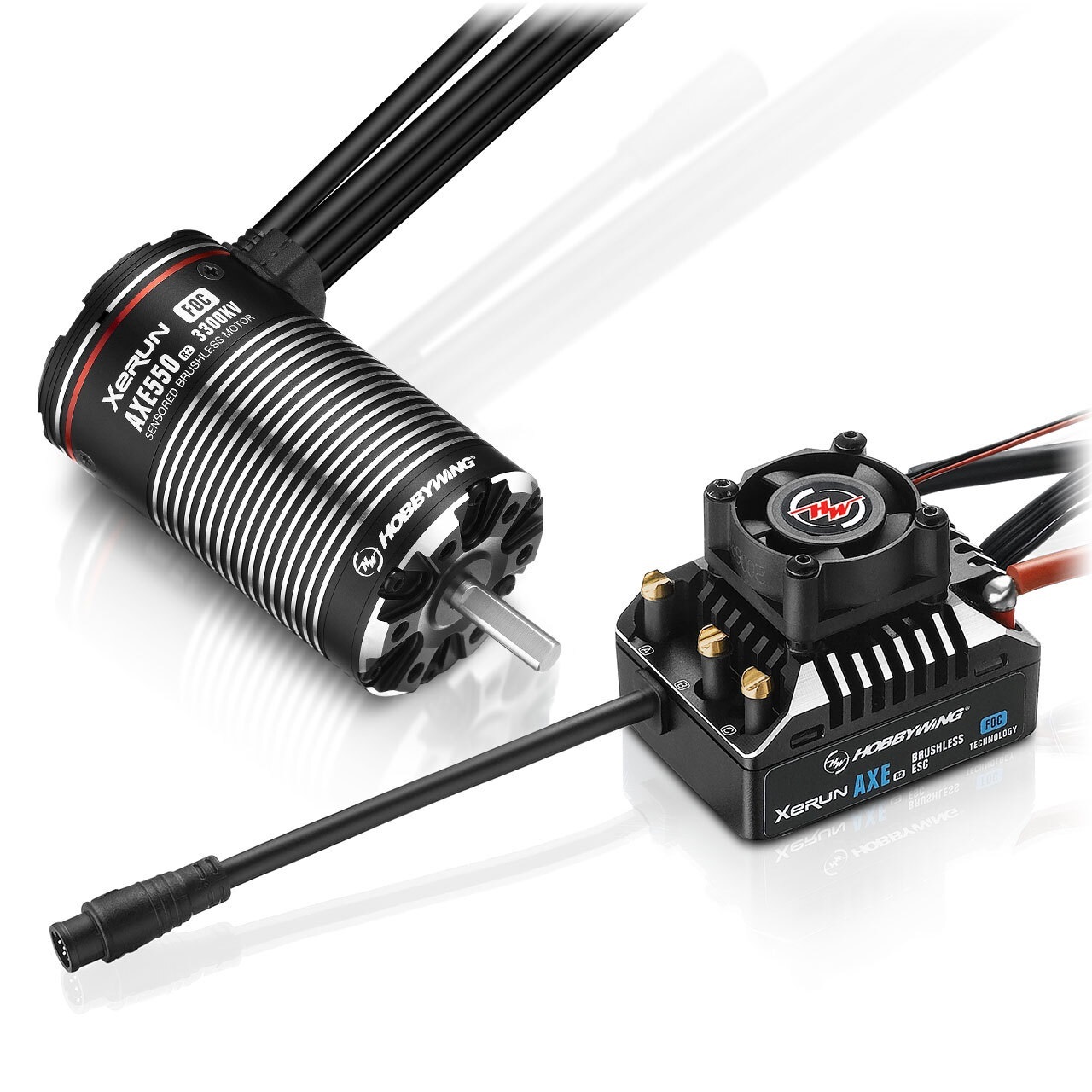

XERUN Combo AXE550 R2-3300KV-FOC System Brushless Motor and Electronic Speed Controller Set

Brushless Motor & ESC Upgrade for RCs

SKU: TR9558


$349.00
RRP $449.00
Sold Out




Calculate Shipping

XERUN Combo AXE550 R2-3300KV-FOC System Brushless Motor and Electronic Speed Controller Set

AXE550 ESC w/ 3300KV Brushless Motor Upgrade for RCs

Features

  • Field-Oriented Control for Super Linearity & High Torque & Extreme Silence
  • Chip-type magnetic encoder guarantees consistency between three phases’ signals and outputs the precise rotor position
  • Polarity Protection to solve the problem of using incorrect wires
  • Waterproof and dust-proof design (*IP67 standards)
  • Intelligent torque output & speed closed-loop control for easy control and consistent motor RPM
  • The adjustable drag brake & drag brake rate control (maximum 200%)
  • Unprecedented parking capacity on slopes, with no jerky stops
  • Read and update ESC firmware via smartphone
  • Incorporates Staggered Pole Technology for zero cogging effect & torque ripping.
  • Sensor harness provides firm connection between motor & ESC and waterproofs sensor ports
  • Advanced Electronic Switch features a waterproof, dust-proof & shock-resistant design
  • Multiple protections: low-voltage cutoff, thermal, fail-safe (throttle signal loss), motor lock-up, and overcurrent

Specifications

ESC

  • Brushless: Yes
  • Cont/Peak Current: 80A/480A
  • Motor Compatibility: Xerun AXE R2 Series
  • Applications: 1/10th Rock Crawler
  • BEC Output: 6V/7.4V Switchable, Continuous Current of 6A
  • Connectors: Input/Output Ends: No Connectors
  • Size/Weight: 47.4(L)x36.2(W)x26.5(H)mm/ 108g (Included input wires)
  • ESC Programming: iOS or Android smart phone (installed with the HW link app)

Motor

  • Brushless: Yes
  • KV: 3300KV
  • LiPos: 2-3S
  • Resistance: 8.4
  • No-load Current: 4.7A
  • Motor Diameter Length: 36/63.8mm (1.42/2.51")
  • Shaft Diameter Length: 5/16mm (0.197/0.63")
  • Poles: 4
  • Weight: 268g

3 Month Warranty

SKU TR9558
Barcode # 9351634045648
Brand Hobbywing
Shipping Weight 0.4000kg
Shipping Width 0.200m
Shipping Height 0.030m
Shipping Length 0.200m
Shipping Cubic 0.001200000m3
Unit Of Measure ea
