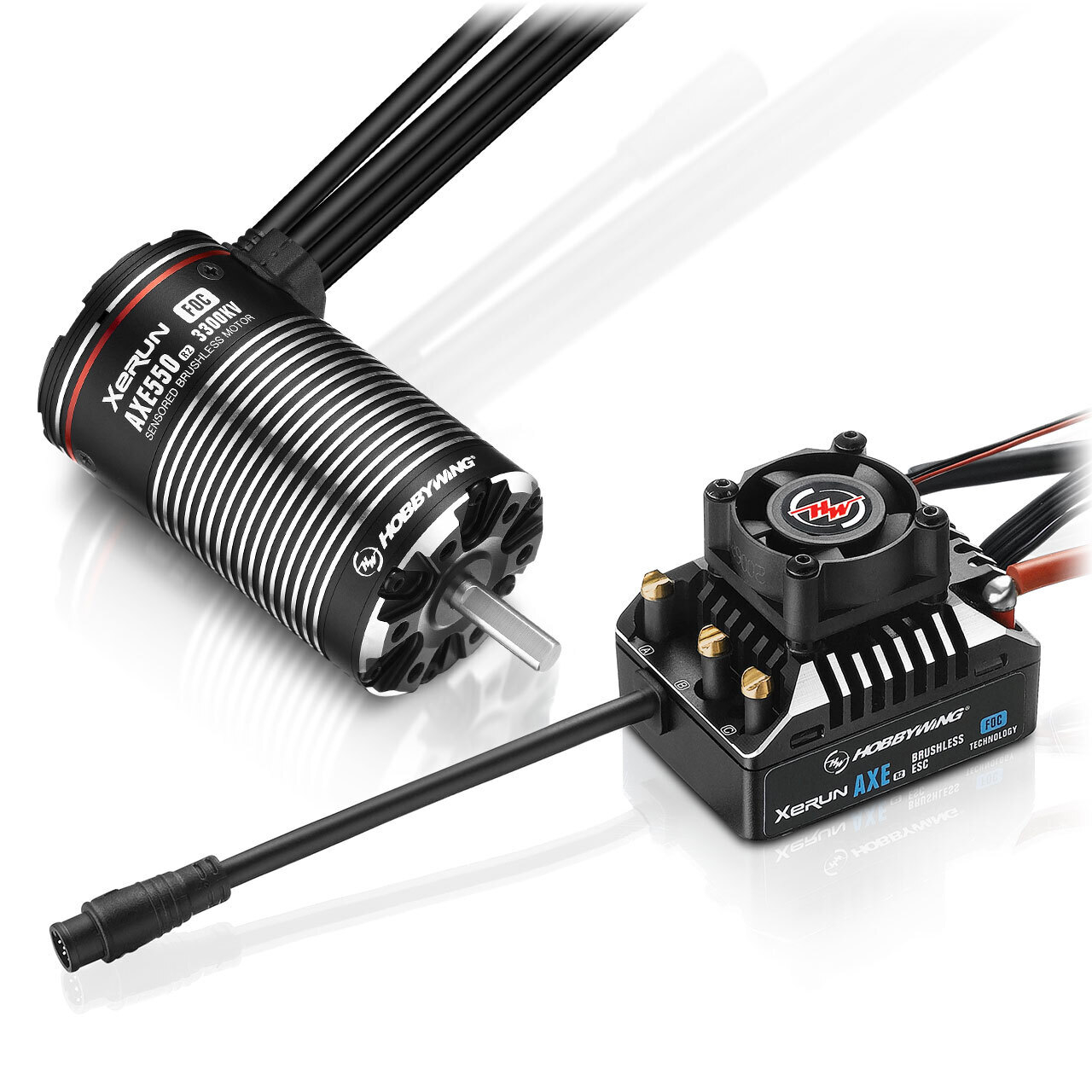

XERUN Combo AXE550L R2-3300KV FOC System Brushless Motor & Electronic Speed Controller Set

Xerun AXE550L ESC w/ R2 3300KV Motor & ESC Combo

FOC (Field-oriented Control) for Super Linearity & High Torque & Extreme Slience

New sensor technology has changed the feel, performance, and overall tune-ability of the new Axe ESC and Motor in ways some have never experienced. Field-oriented Control is the name of this new tech, and is something all new to the scale trail, rock racing, and rc world in-general. This new style of sensor allows extremely accurate control and sensing of the motor while maintaining extreme performance and reliability. The motor and ESC are able to match the RPM of the motor to your throttle position under all driving conditions.

This greatly improves down hill driving giving this system the ability to drive down hill under complete control.FOC technology also makes the whole system extremly silent, the motor doesn't create the annoying PWM noise when it is running.

Intelligent Torque Output & Speed Closed-loop Control for Easy Control

Not just a new ESC and motor, the new FOC sensors, combined with Intelligent Torque output and closed loop speed control mean the ESC and motor will maintain the motor’s Torque level and RPM as the vehicles conditions change. Uphill, down hill, under load, you name it, your Axe system will do what you’re telling it to do.

Battery Reverse Polarity Protection

Hobbywing's AXE FOC Crawler system has been designed with a very unique feature protecting your ESC from damage caused by Battery Reverse Polarity, so no matter how many times you reverse the battery connections the AXE ESC and the paired motor are safe from damage. Maybe this feature is the first in R/C Car industry.

Applicable to All Weather & Track Conditions

The IP-67 waterproof has been taken to a new level with the AXE System. Completely sealed ESC design with robust heatsink case design ensure the ESC is ready for anything you throw at it. The motor as well,is sealed, and combines a completely new sensor harness.No messy extra steps to make your system water proof.

Dual Running Mode

AXE FOC Crawler system supports dual running mode, not only classic "Forward and Reverse (rock crawler)" mode, but also "Forward/Reverse with brake (normal)" mode, to satisfy your application.

Professional Drag Brake Adjustments & Super Parking Capacity

Drag brake rate, and drag brake tuning allows scalers to adjust not only the hill/hold/drag brake, but how quickly the brake applies. This allows high speed driving with out sudden jerks or stops when releasing the throttle. The drag brake itself is super charged, and able to be run at extremely high levels. Compared to a standard crawling brushless setup, the drag brake in the Axe System can be rated at %200 in comparison.

Built-in Bluetooth for Connecting the Mobile APP Directly

Built in Bluetooth connectivity means exactly that. The ESC has Blue Tooth built right in! Nothing extra is needed to access the ESC’s complete on board programming but your smart phone device and the Free Hobbywing App from your App Store. That’s right folks, the Bluetooth feature is BUILT INTO the ESC. No extra devices, wires or connections required!

Easy Obtain AXE Running Status with Real-time Data Recording Function

Connect the HW Link cellphone APP to the ESC and open the real-time data recording function, to check the throttle, voltage, current, temperature, RPM and other data in real-time.
Easy obtain running status of ESC and motor.
Note: Due to transmission distance of bluetooth, the effective distance is about 3m!

Super Internal BEC

The built-in switch mode BEC with a maximum output of 13A and voltage adjustable between 6V and 7.4V allows the use of various standard servos, high voltage servos and other peripherals.

Advanced and Secure Electronic Switch

The dust, dirt, and waterproof switch housing ensures a long reliable life for your ESC, will not suffer from the problems most standard on/off switches encounter.

Multiple Programmable Items

With enough settings to keep your vehicle running “just right”, there are also timing/boost settings, just in case it’s not fast enough, this feature allows you to unleash some extra top speed from your Axe System. Sometimes the trails are long and winding, so more wheel speed is welcome!

Type

Scale - 1/10th

Brushed/Brushless - BL

Sensored/Sensorless - SD

Waterproof - YES

Specifications

Cont./Peak Current - 80A/480A

Input Voltage - 2-3S Lipo/6-9 Cell NiMH

BEC Output - Switch Mode:6V/7.4V@6A

Wires & Connectors

Wires & Connectors - Black-14AWG-200mm*1 Red-14AWG-200mm*1

Output Wires - No

Input Connectors - XT60

Output Connectors - No

ESC Programing via

SET Button on ESC - Not Supported

LED Program Box - Not Supported

LCD Program Box - Not Supported

WiFi Module - Not Supported

Programming Port - Built-in bluetooth

Firmware

Firmware Upgrade - Supported

Size & Weight

Size - 47.4x36.2x26.5mm

Weight - 108g (Including the weight of input line)

Applications

Applications - Only support XERUN AXE R2 motor

Vehicles - 1/10thRock Crawler

--------------

Applicable to All Weather & Track Conditions

Waterproof has been taken to a new level with the Axe System. Completely sealed ESC design with robust heatsink case design ensure the ESC is ready for anything you throw at it. The motor as well, is sealed, and combines a completely new sensor harness. No messy extra steps to make your system water proof.
(Note: please dismantle and clean the motor and put some lubricant onto the bearings after using it in some harsh conditions.)

Built-in High-precision Magnetic Encoder

A high precision magnetic encoder is used in the motor to ensure precision and consistent information is provided to the ESC. This allows the ESC to have more information from the motor than standard “hall” type sensors and provides improved performance and efficiency.

Low Cogging Torque

The AXE R2 Motors have the extremely low cogging effect and torque pulsation.

New Waterproof Sensor Port

The brand new design of new waterproof sensor port has smaller size. Its wiring is simpler and more beautiful than AXR R1 system.

Available in Different Sizes & KVs

Four AXE R2 motors, 540L R2-size 1400KV/2100KV/2800KV & 550-size 3300KV, are applicable to various rock crawlers.
