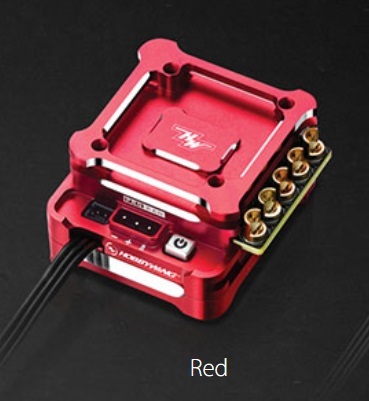

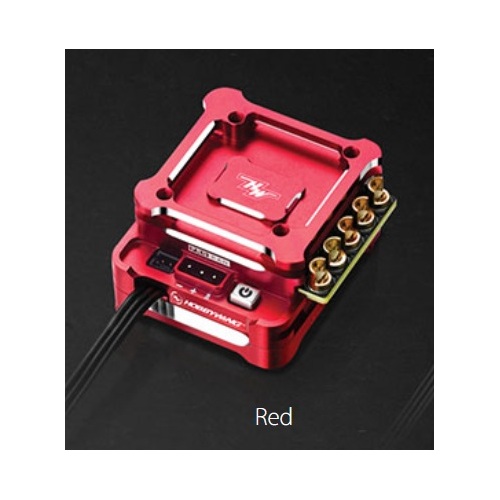

XERUN XD10 Pro-Red Drift Spec Brushless Electronic Speed Controller

Brushless Motor & ESC Upgrade for RCs

Specifications

Product Name: XERUN XD10 PRO

Product Number: 30112614(Black), 30112615(Red), 30112616(Purple)

Type

Scale: 1/10^th

Brushed/Brushless: BL

Sensored/Sensorless: SD

Waterproof: No

Specifications

Cont./Peak Current: 100A/800A

Input Voltage: 2S Lipo

BEC Output: 5-7.4V，5A

Wires & Connectors

Wires & Connectors: Black-13AWG-250mm*2

Output Wires: Black-13AWG-250mm*3

Input Connectors: No

Output Connectors: 3.5mm male plug

Fan

Size: 30x30x10mm

Voltage Range: 5-7.4V

Powered by: Powered by BEC

ESC Programing via SET Button on ESC: Not Supported

LED Program Box: Not Supported

LCD Program Box: Supported

OTA Programmer: Supported

Programming Port: Independent programming port

Firmware

Firmware Upgrade: Supported

Size & Weight

Size: 40.7x35.0x32.0mm(w/Fan)

Weight: 95g (w/wires)

Applications

Applications: SL BL Motors, SD BL Motors

Vehicles

1/10^thdrift car

KV Rating/T Count: ≥8.5T
