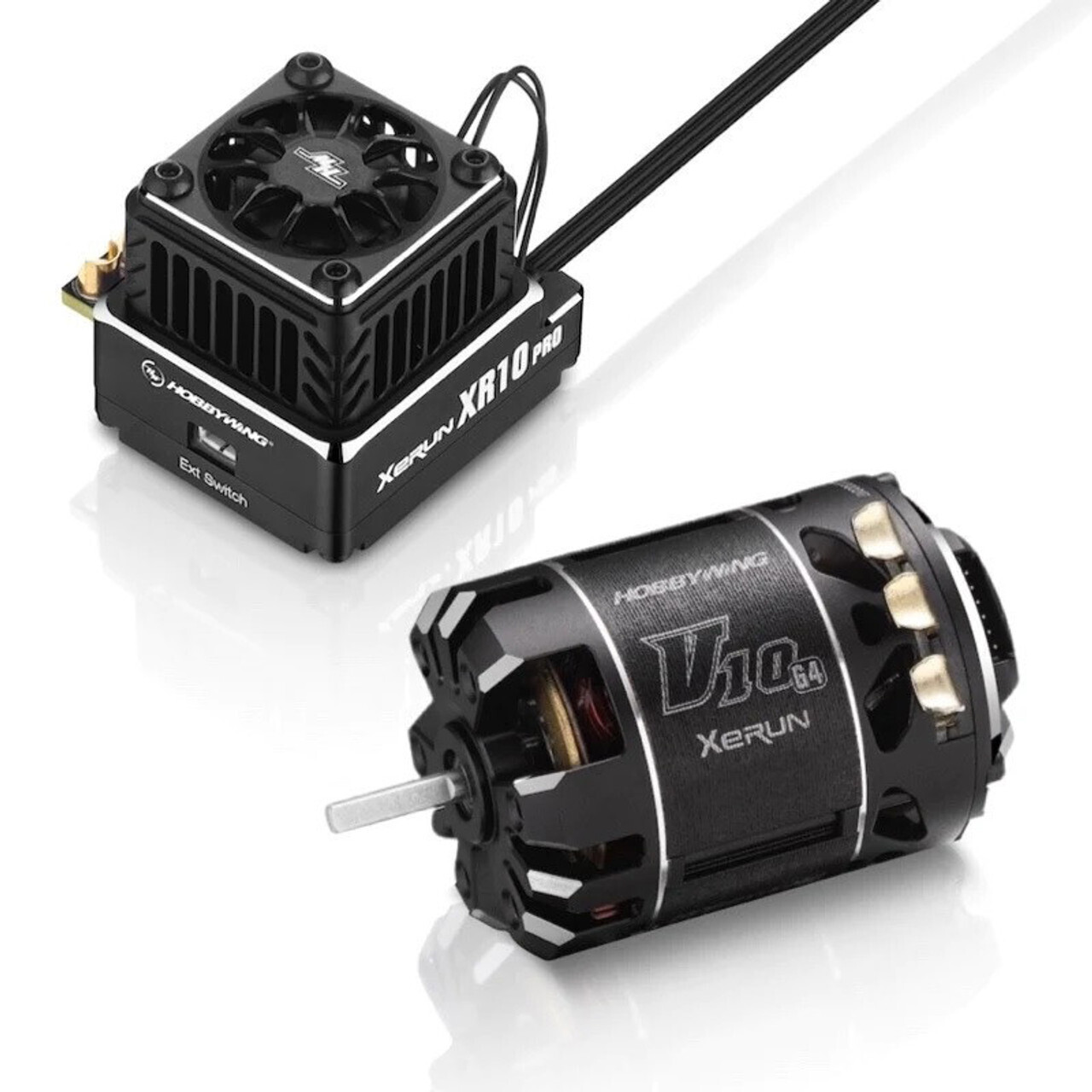

Xerun XR10 Pro G2S ESC with V10-G4-21.5T Brushless Motor Combo

Brushless Motor Upgrade for RCs

 XERUN XR10 Professional

32 Bit, M4 Microprocessor for the ultimate performance

Ultra high performance 32bit M4 microprocessor usage ensures that the ESC is able to deal with anything that even the fastest racers may need. This makes the ESC more precise and have the needed ultra fast response needed to showcase the hardware and talents of the racer.

Flameless Cooling Design & Execution

MEGA Cooling Effect

HOBBYWING's patented FCD system. The focus of the XR10 Pro G2S, is the all new, and patented fan technology. Cooling to the ESC increases performance and reliability. The cooler the ESC can stay, the better it works. For many years, racers simply bolted on a larger or faster fan. This did move more air, however it also increased the power demands of the ESC's internal BEC. This creates internal temperature rises and wear and tear on the ESC's BEC that lead to reliability and performance losses. By allowing more air to flow through the frameless design, loads from the fan actually go down (less power draw) while the airflow and cooling are increased. This new cooling system ensures maximum airflow with no losses through higher fan power draw.

Durable Frameless Fan -Damage to a fan can be devastating for a racer. Something that Hobbywing's design team took into serious consideration was creating a fan that did not break even in the most demanding conditions. New design, materials, and guards ensure the fan will live a long healthy life and not be damaged by even the most demanding racers.

Protect your investment

Reverse Voltage Protected

The XeRun XR10 Pro G2S features complete reverse voltage protection. Often battery packs get "Woops" connected and power is crossed. The XR10 Pro G2S is protected from this causing damage to the ESC.

4X Faster Communication Protocol

Updates and setting changes are now faster and easier thanks to updated communication protocols. Faster connections, to your programmers, mean less timing tuning, and more time racing.

20% More flexibility and control

Precisely Adjust Throttle and Brake PWM

PWM frequencies are a crucial tuning tool. With the custom frequency settings, tuners can now adjust from 1K - 32K PWM for Throttle and 0.5-16K for Brakes. This allows ultra fine-tuning of throttle and brakes to suit any driver or track condition.

Just right.

Optimized programmable Parameters

With the right balance of settings, the XR10 Pro G2S offers all the tuning needed. From tuning throttle, brakes, and everything in between, to being able to set up your "A-C" wires as needed for the cleanest of installs, the G2S has you covered.

Extended Brake Force

Stop is as important as anything else in racing. Updated brake force setting allows extra brake force and a stronger feeling. Often spec/blinky racing stuffers from less than ideal braking power. These new settings allow brakes to be perfect for all applications.

New Drag Brake Acceleration & Softening Function

This new setting controls the drag brake response, or how quickly the drag brakes get applied. Another valuable tuning tool to get your drag brake settings perfect. *Hobbywing Patented ESC technology - Softening function.Power delivery and feel, wrapped into a powerful set of settings that allow drivers to provide an added level of throttle feel fine-tuning. Used to control wheel spin, power delivery, and generally take the harsh edge off big power setups. The amount and range can be tuned to meet any motor or track needs.

Super durable Battery Eliminator Circuit

Internal BEC Built for Racing

The BEC is a switching design and provides up to 10amps of power to your electronics. Adjustable from 5-7.4 volts, the XR10 Pro G2S internal BEC is ready to take on any servo.

Unlock the true potential

Seamless Connectivity

Used with the OTA wireless device and your smart device, you can unlock the true potential of your tuning abilities. View data logs, check real-time data and adjust any and all parameters of your ESC.

Real-Time Data and Data Logs

With the OTA and HW Link App, you can view your ESC's saved Data logs, and use the "Live" data output for benchtop troubleshooting and testing.

 Hobbywing XERUN V10 G4 17.5T 3020kV Competition Stock Sensored Brushless Motor For 1/10 Stock Class Racing. Built for the ultra-competitive Stock racing category around the world, the XeRun V10 G4 motor has all the winning formula you need to win a race. The V10 G4 motor has been tested and developed intensively by our factory drivers such as Spencer Rivkin, Jan Ratheisky and Max Machler to give the ultimate performance.



Feature:



• For: 1/10 Stock Class Racing

• Material: Aluminum

• Color: Black

• This new generation has been greatly optimised with the stator being redesigned for higher efficiency and is equipped with ultra high grade custom magnetic ring rotor for maximum torque and increasing the output power by 5%.

• The motor is equipped with a high-precision endbell plate that uses high quality structural components to greatly improve the consistency and structural stability of the power output at all times.

• The motor adopts a full exposed stator core and is directly exposed to the air for excellent heat dissipation.

• The internal resistance has also been reduced by about 4% resulting in a more efficient and cooler temperature of the motor.

• The V10 G4 adopts a modular structural design which is convenient for maintenance which prolongs the service life of the motor.

• Optional Rotor is available

• The outlet terminals adopt custom-widened U-shaped gold-plated curved copper strips with extremely low internal resistance, and increase the gap between the copper strips, which makes it easy to weld.

• Large open hole structure at the rear of the motor provides excellent heat dissipation effect for endplate components.

• The use of high-performance and high-quality stator, high temperature resistant wire(200°C), high temperature resistant explosion-proof rotor(180°C), international grade bearings.



Specification:



• KV Rating: 2500KV

• LiPo Cells: 2-3S

• No-load Current(A): 3.0A

• O.D.(mm): 35.8

• Length (mm): 51.4

• Shaft Diameter (mm): 3.175

• Weight (g): 148g

• Front Bearing: D9*D4*t4

• Rear Bearing: D8*D3*t4

• Timing: 30-60 Degrees(Adjustable)

What's in the box?

• 1x XR10 Pro G2S ESC (2022)
• 1x XERUN V10 G3 Competition Brushless Motor
• 1x Bonus item(s)
  (2) Input wires & (3) Output wires -PRE-SOLDERED-
  (2) x cooling fan (comes with one backup fan)
  Dual capacitors
  Decals
  Parts: heat tubes, double tape, nylon cable zap traps
