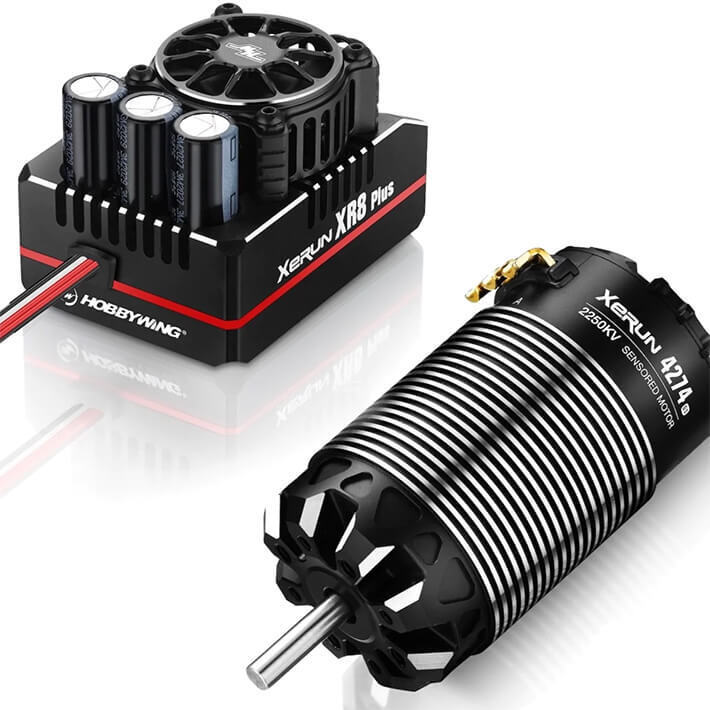

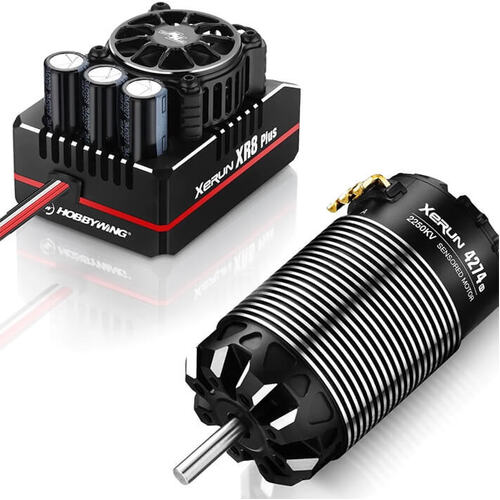

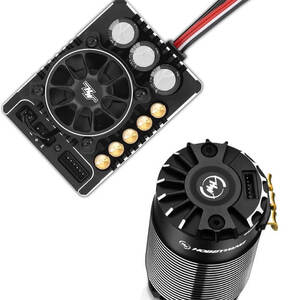

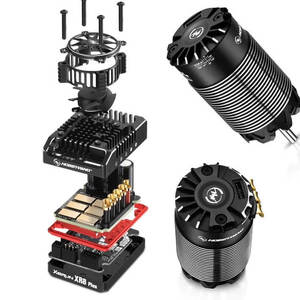

XERUN XR8 Plus-4247 G3-A 2250KV Brushless Motor & Electronic Speed Controller Set

Brushless Motor & ESC Upgrade for 1:8th Scale RCs

SKU: TR9542


$439.00
RRP $549.00
Sold Out




Calculate Shipping

XERUN XR8 Plus-4247 G3-A 2250KV Brushless Motor & Electronic Speed Controller Set

Brushless Motor & ESC Upgrade for 1:8th Scale RCs

Xerun 4274 SD G3 Motor

  • Turbo Timing Technology
  • Full Sensored mode (when paired with XR8 ESC series)
  • Adjustable Timing (Bi-Directional) 20-40 degrees
  • Advanced Hall Sensor System
  • 4-pole-8-magnet "Staggered Pole" rotor - HOBBYWING Patented design
  • Guarantees users effective heat dissipation and dust-prevention
  • The use of double insulated windings (240°C R-rated), NMB bearings from Japan, and the high-intensity adhesive (340°C) guarantees users outstanding performance and super durability
  • Best application: 1/8th Monster Truck, SCT, Buggy, Truck, and Touring Car

Specifications

  • Kv: 2250Kv
  • Pole: 4
  • LiPo: 2-6S (7.4V - 22.2V)
  • No Load Current: 5.4A
  • Size O.Dia / Length: 42 / 74mm
  • Weight: 354g (12.4 oz)
  • Vehicles: 1/8

XR8 Pro 150A ESC

  • Super built-in BEC with the peak output current of up to 15A and switchable output voltage of 6V/7.2V
  • Advanced electronic switch with the lifespan of over 50000 times of switching on & off
  • High-efficiency heat-dissipating system
  • Special dynamic timing control program is available when this ESC runs in full-sensored mode
  • Innovative coasting function (patent pending)
  • ESC customization by a LCD program box (Purchase separately) or OTA programmer (Purchase separately)

Specifications

  • Cont./Peak Current: 150A/950A
  • Motor Type: Sensored / Sensorless Brushless Motor
  • Main Applications: 1/8th Scale On-road, Buggy, Truggy for High-level Races
  • Motor Limit: 6S LiPo/12S NiMH: 4268/4274 Size Motor,KV≤3000;
  • LiPo/NiMH Cells: 6-12 Cells NiMH,2-4S LiPo
  • BEC Output: 6V/7.2V Switchable, Continuous Current of 6A (Switch-mode BEC)
  • Cooling Fan: Powered by the stable BEC output voltage of 6V/7.2V
  • Size/Weight: 58.7(L) x 48(W) x 36.9(H) / 127g (W/O Wires)
  • Programming Port: FAN/PRG Port
  • ESC programming: LCD Program box, WiFi module enabled

3 Month Warranty

SKU TR9542
Barcode # 9351634045563
Brand Hobbywing
Shipping Weight 0.4000kg
Shipping Width 0.200m
Shipping Height 0.030m
Shipping Length 0.200m
Shipping Cubic 0.001200000m3
Unit Of Measure ea
