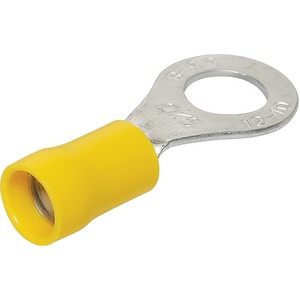

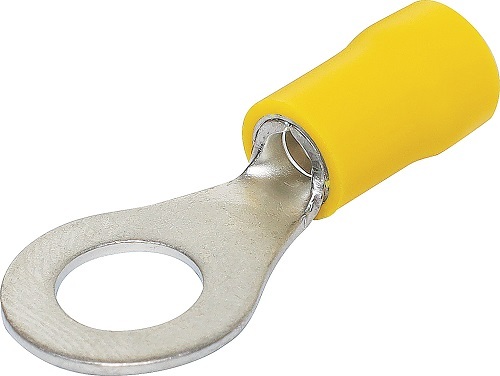

Yellow 10mm Ring Crimp Pk 10

Ring type with double crimp

Wire: 4-6mmØ
Stud: 10mm
Max. voltage: 600V

What is a double crimp?
A double crimp features two crimping surfaces. Firstly, an inner crimping ring which is directly attached to the spade lug, this crimps to the exposed cable core. Secondly the outer crimping ring secures both the cable core and outer sheath to the crimp terminal. This results is a vastly more reliable connection.

The diagram below shows how the outer crimping ring surrounds the inner ring, ensuring a quality connection every time. For best results, use the Altronics TT6035.

Note: Crimp shown is an example only.
