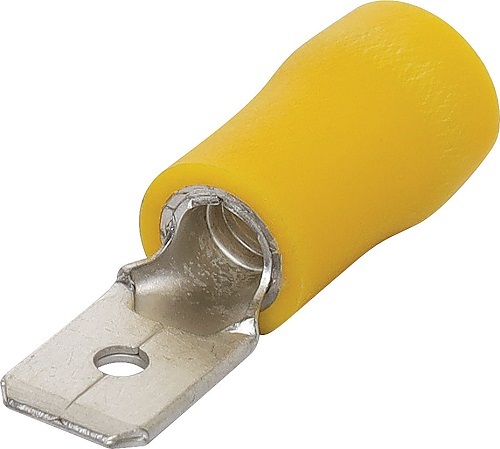

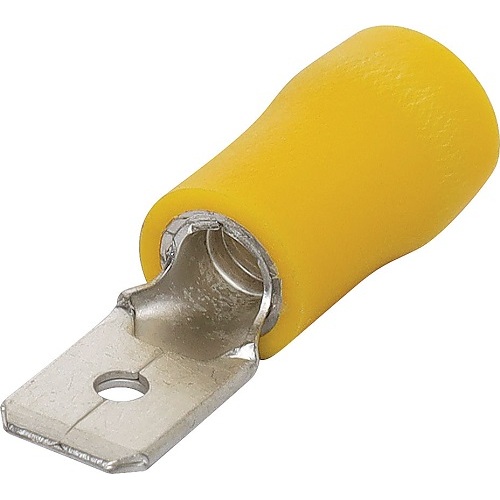

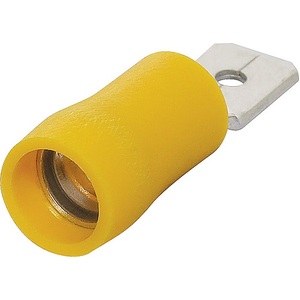

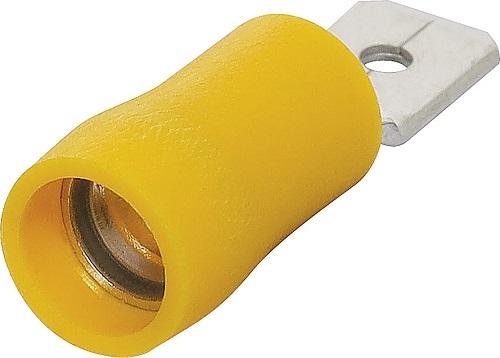

Yellow 6.3mm Male Spade Crimp Pk 100

Spade type with double crimp. Pack of 100.

Wire: 4 - 6mmØ
Stud: 6.3mm
Max. voltage: 300V

What is a double crimp?
A double crimp features two crimping surfaces. Firstly, an inner crimping ring which is directly attached to the spade lug, this crimps to the exposed cable core. Secondly the outer crimping ring secures both the cable core and outer sheath to the crimp terminal. This results is a vastly more reliable connection.

The diagram below shows how the outer crimping ring surrounds the inner ring, ensuring a quality connection every time. For best results, use the Altronics TT6035.

Note: Crimp shown is an example only.
