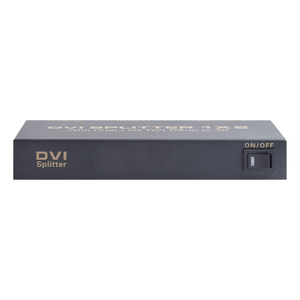

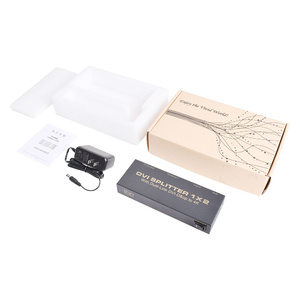

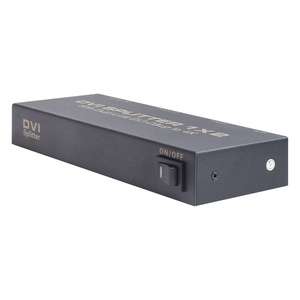

2 Port DVI-D Dual Link Video Splitter

Supports resolution up to 3840 X 2160 @ 30Hz

This DVI-D Video Splitter supports all DVI Digital Dual Link resolutions. Superb image quality is maintained throughout, even when splitting the video signal to multiple monitors.

Features:

• 1X DVI-D input and 2/4/8/16X DVI-D output

• Support dual Link DVI-D signal transmission, resolution up to 3840X2160 @ 30Hz

• Support resolution 640X480 @ 60Hz to 3840X2160 @ 30Hz, compatible with the HDMI 1080P standard

• Support for long distance signal transmission

• Installs in minutes, No loss of quality

• Supports wide range voltage DC input (DC5V~12V)

Specifications:

DVI interface type: Dual link DVI-D

Single link input/output resolution : up to 1920x1080@60Hz

Dual link input/output resolution : up to 3840x2160@30Hz

Support video color format : 24bit/deep color 30bit,36bit

Max signal bandwidth : 340MHz

Max baud rate : 3.4Gbps Serial Link

Input/Output TMDS signal : 0.5~1.5Volts p-p(TTL)

Input/Output DDC signal : 5Volts p-p (TTL)

DVI input cable distance : ≤10m AWM 20276 DVI standard cable

DVI output cable distance : ≤10m AWM 20276 DVI standard cable

Max working current : 0.8A/5V

Power adapter : DC5V/2A

Operating Temperature range : -5 to +45℃

Storage Temperature range : -15 to +55℃

Operating Humidity range : 10 to 90%RH (No Condensation)

Storage Humidity range : 5 to 95%RH (No Condensation)

Case Dimension (L x W x H) : 179 x 66 x 28mm
